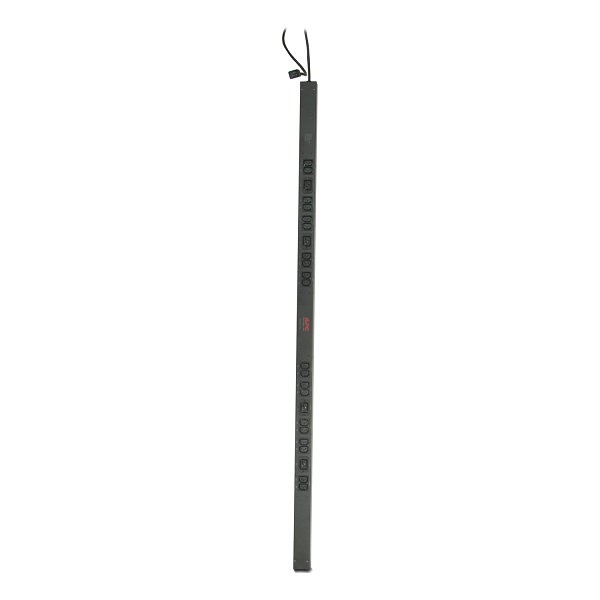

AP7552

APC Rack PDU,Basic, Zero U, 16A, 230V, (20) C13 & (4) C19 , IEC C20

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 4 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with an IEC 60309 16A plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Specifications :

Overview
———
Lead time: Usually in Stock
—–
Main
—–
Name: AP7552
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 3.05 m
Number of cables: 1
Provided equipment: Installation guide, Rack mounting brackets, Toolless mounting kit
————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 161.9 cm
Width: 5.6 cm
Output Voltage: 230 V
Depth: 4.4 cm
Net weight: 4.86 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60320 C20
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Input current limits: 16 A
Load capacity: 3680 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 20 IEC 60320 C13, 4 IEC 60320 C19

————
Environment
————
product certifications: CE, GOST, IRAM, VDE
Ambient air temperature for operation: 0…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 212.1 cm
Package 1 Width: 15.2 cm
Package 1 Length: 12.7 cm
Package 1 Weight: 5.758 kg
