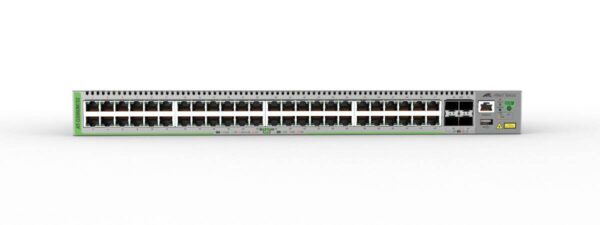

CentreCOM GS980M Series

Gigabit Layer 3 Lite Managed Switches



The Allied Telesis CentreCOM GS980M Series of Layer 3 Gigabit switches enable a cost-effective and fully managed network. A high-density, space saving solution, with Power over Ethernet (PoE+) to connect and power devices such as video surveillance cameras and IP phones, makes the GS980M Series ideal for applications at the network edge.



Overview

• Reduce costs and automate network and device management with Allied Telesis Autonomous Management Framework™ Plus (AMF Plus)

• High speed gigabit network access for power users

• Support converged networks with PoE+ to power devices like wireless access points, digital surveillance cameras and IP phones

• Expand network reach while keeping simple operation in distributed environments with long-distance fiber connectivity



Key Features

• AlliedWare Plus™ feature-rich operating system

• Autonomous Management Framework™ Plus (AMF Plus) edge node

• Active Fiber Monitoring™ (AFM)

• Ethernet Protection Switched Ring (EPSRing™)

• Static Routing and RIP

• IEEE 802.1x/MAC/Web authentication support

• DHCP snooping

• Loop Protection

• Eco-friendly

• Web-based Graphical User Interface (GUI)



Specifications :

Physical

Product	Width x Depth x Height	Mounting	Unpackaged Weight	Packaged Weight	Packaged Dimensions
GS980M/52PS	441 x 359 x 44 mm (17.36 x 14.13 x 1.73 in)	1RU Rack-mount	5.8 kg (12.79 lbs)	7.8 kg (17.20 lbs)	575 x 520 x 150 mm (22.64 x 20.47 x 5.90 in)
GS980M/52	441 x 323 x 44 mm (17.36 x 12.72 x 1.73 in)	1RU Rack-mount	4.5 kg (9.92 lbs)	6.4 kg (14.12 lbs)	575 x 445 x 150 mm (22.64 x 17.52 x 5.90 in)

Power and Noise Characteristics
