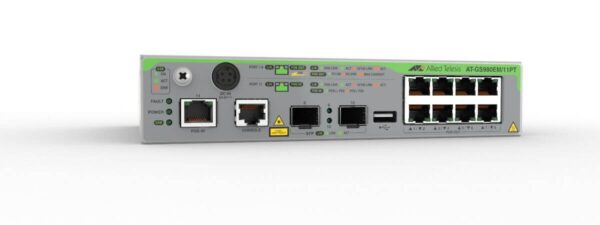

CentreCOM GS980EM Series

Gigabit PoE++ Layer 3 Lite Managed Switches



Flexible Power over Ethernet switches with capabilities that support IoT device connectivity in today’s converged business environments.



Overview

• Enable today’s converged business networks with flexible PoE to connect and power devices such as high-resolution security cameras, wireless APs, IP phones, and more

• Flexible deployment of network edge switches and IoT devices with PoE pass-through that powers both the edge switch and connected end-points

• Provide PoE capacity and resilience with triple external PSUs available for distribution switches while also simplifying UPS power redundancy of the network

• Extend network layout with IoT devices able to be connected and powered up to 200 meters from the PoE distribution source

• Reduce costs and automate network and device management with Allied Telesis Autonomous Management Framework™ Plus (AMF Plus). Deploy the GS980EM Series as AMF Plus edge nodes



Key Features

• AlliedWare Plus™ feature-rich operating system

• 90W PoE++ per port (GS980EM/10H) for high power devices, or for powering the GS980EM/11PT and its connected devices with PoE pass-through

• 30W PoE+ per port (GS980EM/11PT) for connecting and powering end devices

• Active Fiber Monitoring™ (AFM) secures uplink connectivity

• Fanless design for high-reliability and silent operation

• DIN rail or rack-mount supports flexible deployment



Specifications :

Physical

Product	Width x Depth x Height	Mounting	Unpackaged Weight	Packaged Weight	Packaged Dimensions
GS980EM/10H	210 x 180 x 42.5 mm (8.26 x 7.08 x 1.67 in)	Rack-mount	1.6 kg (3.53 lb)	2.7 kg (5.95 lb)	417 x 336 x 151 mm (16.42 x 13.23 x 1.67 in)
GS980EM/11PT	210 x 180 x 42.5 mm (8.26 x 7.08 x 1.67 in)	Rack-mount	1.6 kg (3.53 lb)	3.5 kg (7.71 lb)	417 x 336 x 151 mm (16.42 x 13.23 x 1.67 in)

Power Characteristics
