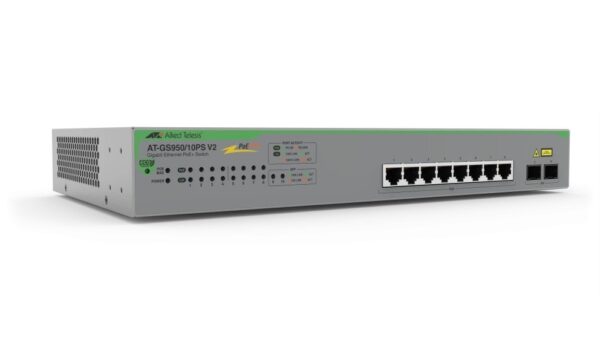

GS950 V2 Series

WebSmart Gigabit PoE+ Switches



A cost-effective and high-performing solution that enables small businesses to connect and power devices at the network edge.



Overview

• Combine the performance of Gigabit connectivity with PoE+ for a flexible network edge solution

• User-friendly, web-based management

• Minimal power consumption for an eco-friendly environment

• The full 30 Watts of PoE+ to connect and power a variety of devices



Key Features

• 802.1x port-based, and MAC-based, network access control

• IGMP snooping (v1/v2)

• Ingress/egress rate limiting

• Port-based traffic prioritization



Specifications :

Physical

Product	Width	Depth	Height	Weight
GS950/10PS V2	330 mm (13.00 in)	180 mm (7.09 in)	44 mm (1.73 in)	1.9 kg (4.19 lb)
GS950/18PS V2	440 mm (17.32 in)	250 mm (9.80 in)	44 mm (1.73 in)	3.7 kg (8.16 lb)
GS950/28PS V2	440 mm (17.32 in)	250 mm (9.80 in)	44 mm (1.73 in)	3.7 kg (8.16 lb)
GS950/52PS V2	440 mm (17.32 in)	431 mm (17.080 in)	44 mm (1.73 in)	6.1 kg (13.45 lb)

Power and Noise Characteristics

Product	No PoE Load Max Power Consumption (W)	No PoE Load Max Heat Dissipation (BTU/h)	No PoE Load Noise (dBA)	Full PoE+ Load Max Power Consumption (W)	Full PoE+ Load Max Heat Dissipation (BTU/h)	Full PoE+ Load Noise (dBA)
GS950/10PS V2	25	119.425	Fanless	100	350.692	Fanless
GS950/18PS V2	75	255.911	41	260	890.948	47.1
GS950/28PS V2	95	324.153	41	270	919.383	52
GS950/52PS V2	150	511.821	38	520	1,800.853	50

Note: Noise values are dependent on the ambient temperature, not POE load. Above 25C the fan runs at full speed.

Power over Ethernet
