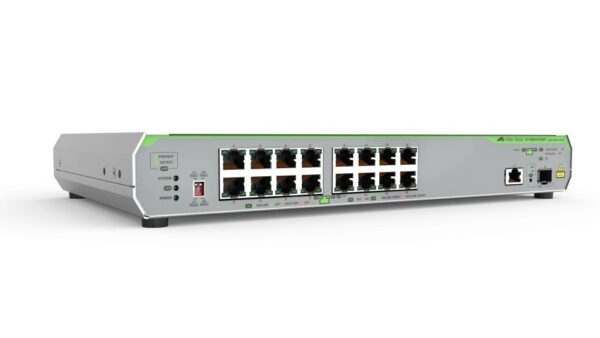

Allied Telesis AT-GS910/18XST-30 16-port 10M/100M/1 Gigabit and 1-port 100M/1/2.5/5/10 Gigabit copper uplink with 1-SFP/SFP+slot

Allied Telesis AT-GS910/18XST-30 16-port 10M/100M/1 Gigabit and 1-port 100M/1/2.5/5/10 Gigabit copper uplink with 1-SFP/SFP+slot

฿28,640.00 (รวมภาษี)
฿26,766.36 (ไม่รวมภาษี)

รหัสสินค้า: AT-GS910/18XST-30

มีสินค้าอยู่ 100

CentreCOM GS910/XST Series

Unmanaged Gigabit Ethernet Switches



The GS910/XST Series of Gigabit unmanaged switches offer flexible deployment with both Multi-Gigabit copper and 10 Gigabit fiber uplinks. Also providing silent operation and Gigabit-to-the-desktop connectivity, they are ideal for high-bandwidth applications at the network edge.



Overview

  • Enable immersive-experience applications and high data throughput at the network edge with Gigabit-to-the-desktop connectivity

  • Silent operation and a compact design support flexible deployment in work areas

  • High performing uplink options include 1/2.5/5/10G Multi-Gigabit copper, or 1/10G fiber

  • Easily configure features like loop guard and Energy Efficient Ethernet with front panel DIP switches



Key Features

  • Simple plug-and-play installation

  • Full-duplex flow control

  • Up to 16K MAC addresses, and 12KB jumbo frames

  • Auto-negotiation of port speed, duplex, and MDI/MDI-X

  • EAP/BPDU pass-through for resilient networking

  • Wide operating temperature of 0-50°C



Specifications :

Product

10/100/1000T (RJ-45) Copper Ports

100M/1/2.5/5/10 Gigabit Ports

1/10 GIGABIT SFP/SFP+ Ports

DIP Switches

Switching Fabric

Forwarding Rate

GS910/10XST

8

1

1

2

30Gbps

41.66Mpps

GS910/18XST

16

1

1

2

72Gbps

53.57Mpps

GS910/26XST

24

1

1

2

88Gbps

65.47Mpps

Physical

Product

Width x Depth x Height

Mounting

Unpackaged Weight

Packaged Weight

Packaged Dimensions

GS910/10XST

210 x 275 x 42.5 mm

(8.26 x 10.82 x 1.67 in)

Rack-mount

1.9 kg (4.19 lb)

2.5 kg (5.51 lb)

26 x 43 x 10 cm

(10.23 x 16.93 x 3.94 in)

GS910/18XST

341 x 210 x 44 mm

(13.42 x 8.26 x 1.73 in)

Rack-mount

3.6 kg (7.93 lb)

2.7 kg (5.95 lb)

36 x 53 x 10 cm

(14.17 x 20.86 x 3.94 in)

GS910/26XST

341 x 210 x 44 mm

(13.42 x 8.26 x 1.73 in)

Rack-mount

2.9 kg (6.39 lb)

3.8 kg (8.38 lb)

36 x 53 x 10 cm

(14.17 x 20.86 x 3.94 in)
