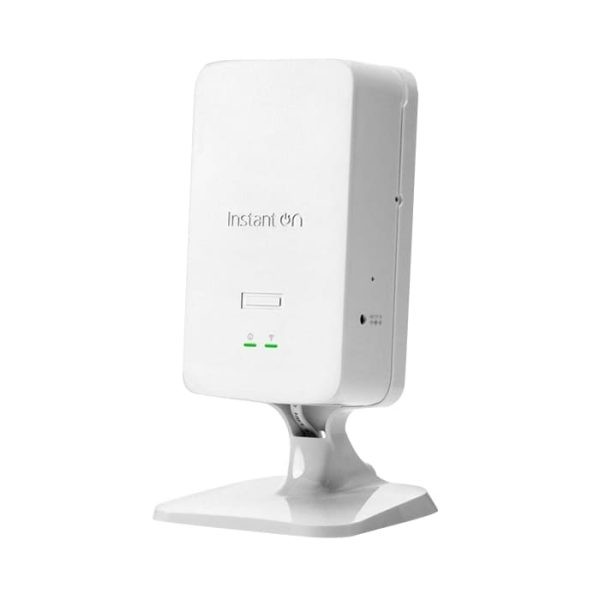

HPE Networking Instant On Access Point Dual Radio 2×2 Wi‑Fi 6 5‑Pack (RW) AP22D



The HPE Networking Instant On Access Points AP22D is the more versatile version of the AP22. It has the same antenna array and spatial streams (2×2:2) but has a 2.5 GbE uplink port and four 1 GbE downlink ports for hardwired devices. The AP22D is great for IP phones or receipt printers in areas that need more Ethernet ports and only one in-room Ethernet port is available.



Features :

802.11ax Wi-Fi CERTIFIED 6™

• HPE Networking Instant On Access Points AP22D features Orthogonal Frequency-Division Multiple Access (OFDMA) which allows access points to handle multiple Wi-Fi 6 capable clients on each channel simultaneously and improve efficiency by boosting overall capacity, reducing latency.

• Target Wake Time (TWT): Ideal for IoT devices that communicate infrequently, TWT establishes a schedule for when clients need to communicate with an AP. This reduces power consumption and can extend the battery life of clients.

• Multi-User, Multiple Input, Multiple Output (MU-MIMO), allows the access point to simultaneously serve multiple clients (Wi-Fi 5 and Wi-Fi 6).



2.5 Gigabit Ethernet Uplink Port

• HPE Networking Instant On Access Points AP22D offers increased available bandwidth to allow for more traffic over Wi-Fi 6 or with the downlink ethernet ports.

• Use existing cabling infrastructure like Cat5 or Cat6(a) cables and avoid the additional cost of running new cables across your facility.

• Future-proof your environment with the added bandwidth capacity to handle the ever-growing world of cloud-based applications.



Four Downlink 1 Gigabit Ethernet Ports

• Connect up to four copper RJ-45 devices to the HPE Networking Instant On Access Points AP22D without the need for an additional switch to manage.

• Downlink ports can power two 15W PoE (802.3af) devices without the intervention of a bulky PoE-Injector.



Specifications :

Model	S1U81A
Certifications	Wi-Fi Certified 6
Input voltage	Class 4 or 6 PoE (802.3at or bt)
Wi-Fi antenna	Dual Omni-directional 2×2 MIMO
Mounting	Built-in Wall mount or included desk mount
Ports	1x 2.5GbE uplink and 4x 1GbE downlink
Power consumption	51W (PoE) or 50W (DC)
