HPE R8N86B

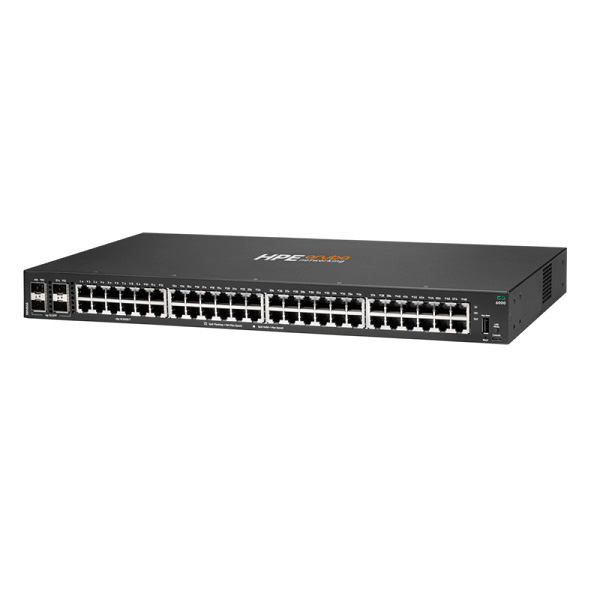

HPE Aruba Networking CX 6000 48p 10M/100M/1G 4p SFP 1G Switch



The HPE Aruba Networking CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises.



Features :

Entry-level Layer 2 access switches

• The HPE Aruba Networking CX 6000 Switch Series offers Ethernet gigabit connectivity and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch offices and SMB networks.
• The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System used across HPE Aruba Networking CX switching platforms.
• It has fully-managed enterprise-class switches switches deliver Layer 2 capabilities with support static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow®, and IPv6.
• The CX 6000 series provides right-size deployment with choice of 8, 12, 24, and 48-port 1U models with convenient built-in 1GbE uplinks and up to 740W of Class 4 PoE.
• It simplifies ownership with no switch software licensing or subscriptions required.

AI-ready erformance and power

• The HPE Aruba Networking CX 6000 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and optimized power consumption ideal for AI, Wi-Fi 7, and IoT requirements.
• It supports up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port to enable full deployments of wireless access points and IoT devices.
• It has up to four built-in wire speed 1GbE uplinks remove bottlenecks at the access layer where users and devices connect.

Simplified configuration and management

• The HPE Aruba Networking CX 6000 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.
• HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
• The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
• It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
• The CX 6000 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks.



Specifications :

Differentiator : Non-PoE

Power consumption : Max. Power (w/o PoE): 35.2W

Input voltage : 100–127 VAC / 200–240 VAC

Ports : 48 x 10/100/1000BASE-T ports, 4 x 1 G SFP ports, 1 x USB-C console port, 1 x USB Type-A host port

Latency : 1 Gbps: 1.9 μSec

Switching capacity : 104 Gbps

Throughput : 77.3 Mpps

Memory and processor : CPU: Dual-core Arm® Cortex-A9 @ 1016 MHz, Memory: 4 GB DDR3, Flash: 16 GB eMMC

PoE capability : Non-PoE model

Operating temperature : 32°F to 104°F (0°C to 40°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km)

Management features : Management flexibility with support for HPE Aruba Networking Central, easy-to-use Web GUI, CLI, and HPE Aruba Networking Switch Multi-Edit Software
