AR3157

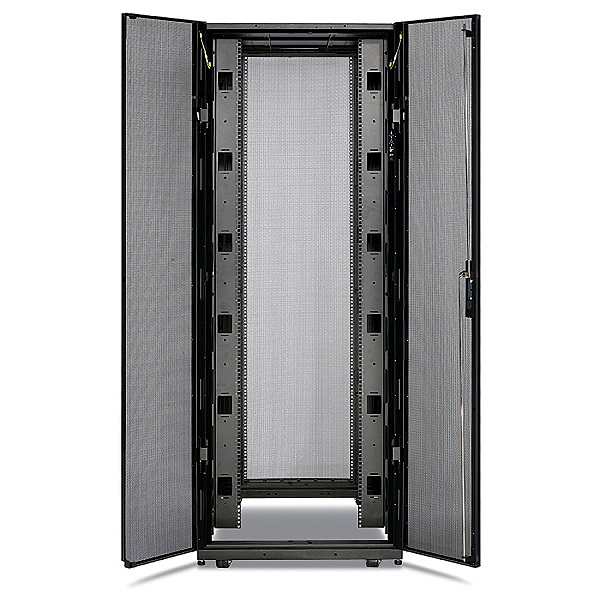

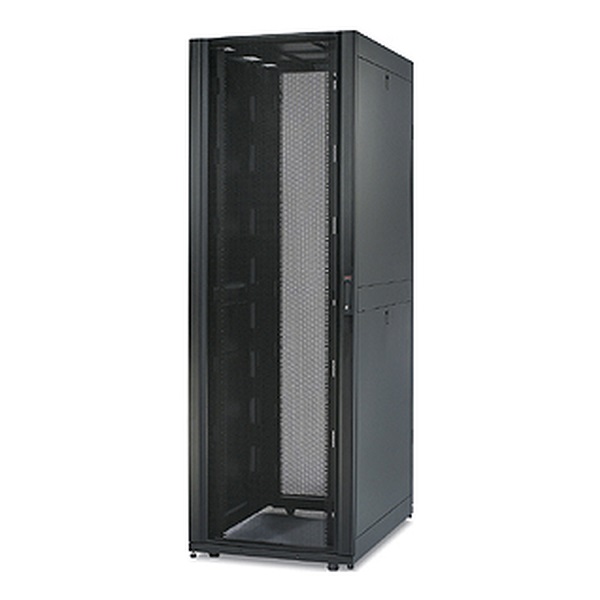

APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 750W x 1070D mm

An industry standard server rack ready for medium to high density environments with height designed to easily fit through standard doorways. Wide rack design allows for additional space beside the vertical mounting rails for passing cabling from front-to-back in the enclosure. Width is ideal for converged and hyperconverged IT which include a mix of server, storage, and network switches all in one rack. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.

Specifications :

Overview
———
Lead time: Usually in Stock

—–
Main
—–
Product or component type: Rack enclosure
Number of rack unit: 48U
Provided equipment: Baying hardware, Key(s) (Keyed-alike doors and side panels), Leveling feet, Mounting hardware, Pre-installed casters, Side panels

———
Physical
———
Height: 2258 mm
Width: 750 mm
Depth: 1070 mm
Net weight: 169.09 kg
Colour: Black
Mounting preference: No preference
Mounting mode: Not rack-mountable
Maximum mounting depth: 914.9 mm
Minimum mounting depth: 261.9 mm
Rack width: 19″
Marking: 14 gauge EIA mounting rail, 16 gauge front door, 16 gauge post, 16 gauge rear door, 18 gauge roof, 18 gauge side panels
Permanent permissible load: 1020.6 kg dynamic, 1701.0 kg static

————
Conformance
————
Standards: UL 2416, UL 60950-1, EIA-310E

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 238.4 cm
Package 1 Width: 85.1 cm
Package 1 Length: 115.6 cm
Package 1 Weight: 184.09 kg
