AP8453

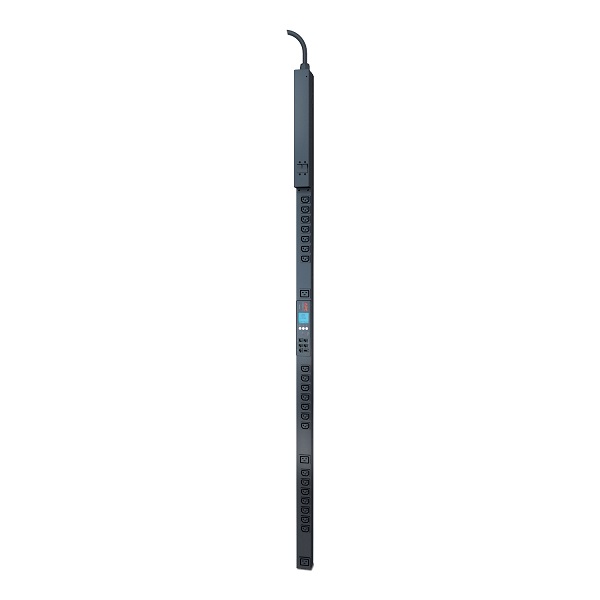

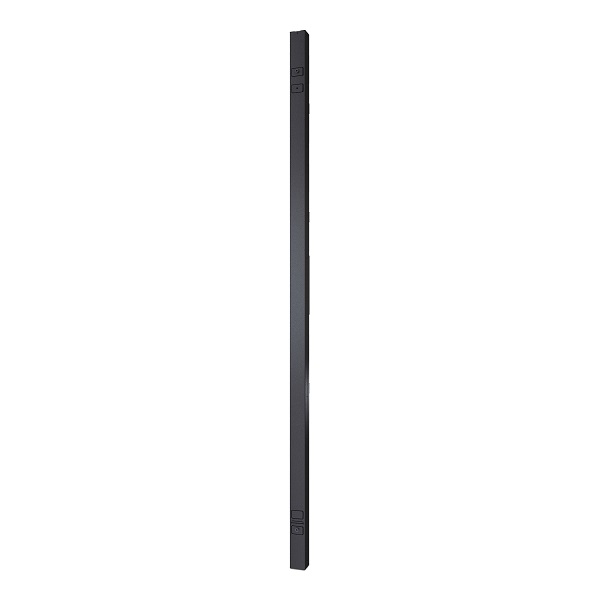

APC NetShelter Metered-by-Outlet Rack PDU, 0U, 1PH, 7.4kW 230V 32A, x21 C13 and x3 C19 outlets, IEC 309 cord

APC Metered-by-Outlet Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh) at the outlet level. This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to monitor and optimize energy use, and plan for capacity on a granular level for things like customer power usage. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (21) C13 and (3) C19 locking outlets. Daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Overview
———
Presentation: APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection. Current metering provides real-time remote monitoring of connected loads. Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Lead time: Usually in Stock

————–
Complementary
————–
Input Voltage: 200 V, 208 V, 230 V
Height: 182.9 cm
Width: 5.6 cm
Output Voltage: 230 V
Depth: 5.1 cm
Net weight: 8.21 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 32 A 2P + E
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Permissible voltage: 220…240 V
Max line current: 32 A
Input current limits: 32 A
Load capacity: 7400 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 21 IEC 60320 C13, 3 IEC 60320 C19

———–
Environment
————
product certifications: VDE
Standards: EN 55022 class A, EN 55024, EN 61000-3-2, EN 61000-3-3
Ambient air temperature for operation: -5…60 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m

————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 203.7 cm
Package 1 Width: 16.3 cm
Package 1 Length: 11.7 cm
Package 1 Weight: 10.48 kg
