AP7557

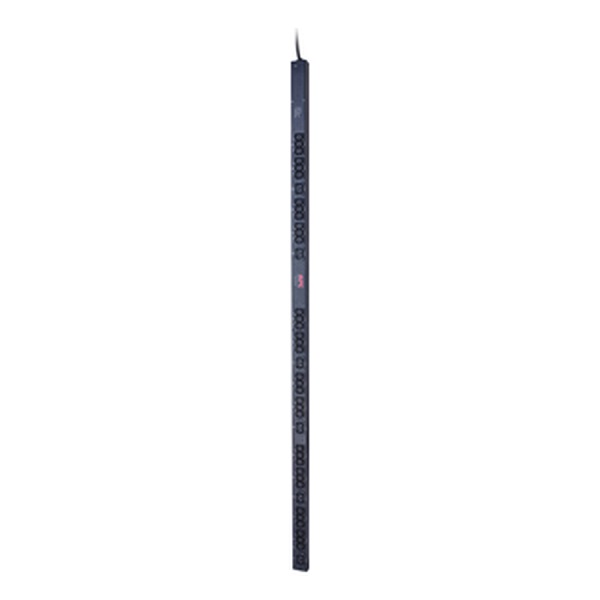

APC Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 230V. The PDU features 36 IEC 60320 C13 outlets and 6 IEC 60320 C19 outlets, providing ample connections for IT equipment. It includes a 3-foot power cord with an IEC 60309 16A plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.

Specifications :

Overview
———
Lead time: Usually in Stock
—–
Main
—–
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 0.9 m
Number of cables: 1
Provided equipment: Installation guide, Rack mounting brackets, Toolless mounting kit, User manual
————–
Complementary
————–
Input Voltage: 400 V 3 phases
Height: 177.8 cm
Width: 5.6 cm
Output Voltage: 230 V
Depth: 4.4 cm
Net weight: 5.45 kg
mounting location: Side
Mounting preference: No preference

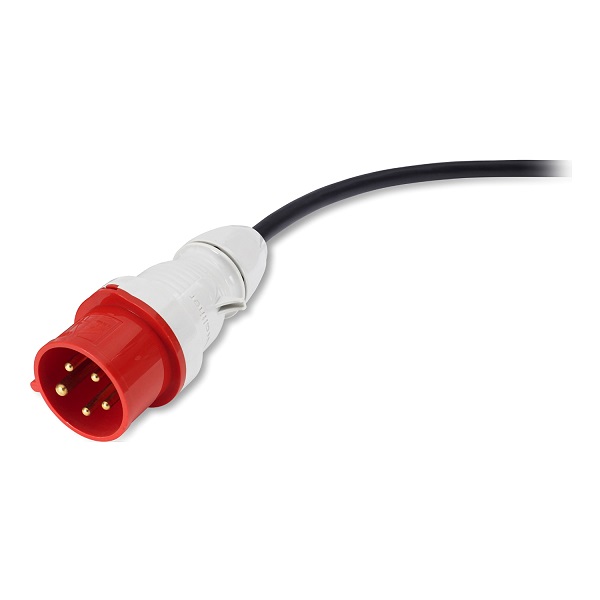

Input Plug Type: IEC 60309 16 A 3P + N + PE
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Permissible voltage: 200…250 V
Input current limits: 16 A
Load capacity: 11000 VA
Network frequency: 50/60 Hz

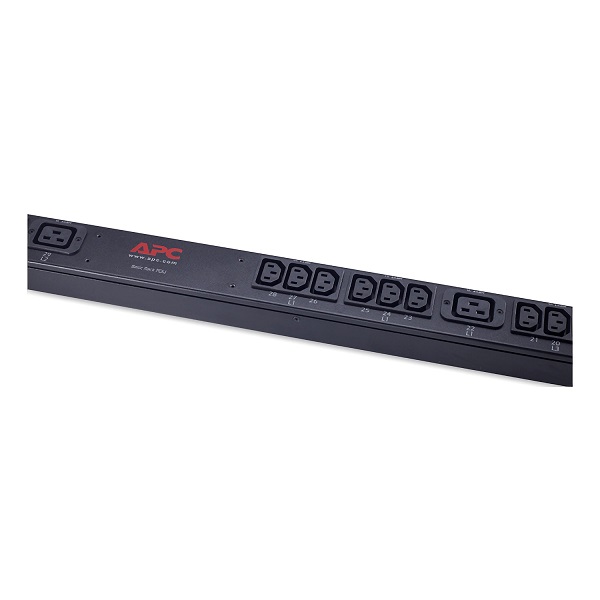

Outlet type and quantity: 36 IEC 60320 C13, 6 IEC 60320 C19
————
Environment
————
product certifications: C-Tick, CE, GOST, MIC, Queensland Australia, VDE
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 213.4 cm
Package 1 Width: 15.2 cm
Package 1 Length: 12.7 cm
Package 1 Weight: 8.841 kg
