HPE R1B21A

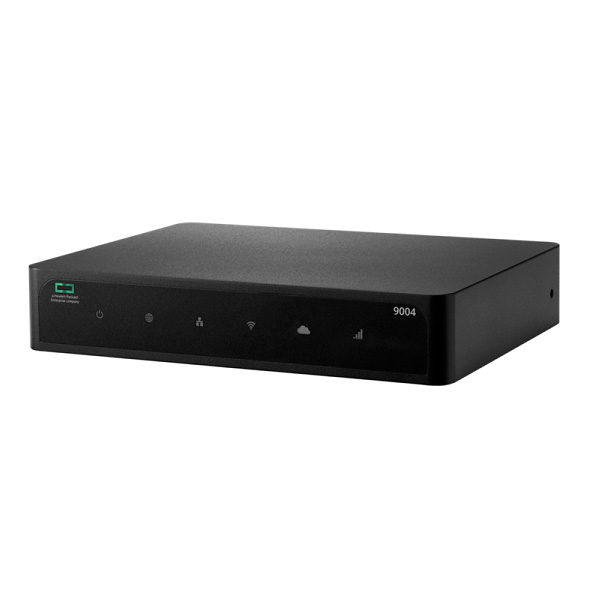

HPE Aruba Networking 9004 (RW) 4‑Port GbE RJ45 2K Clients ‑ 32 APs Gateway



HPE Aruba Networking 9000 Series Gateways provide high‑performance networking, SD‑WAN and security functionality in compact and cost‑effective form factors. Ideally suited for branch and small campus networks, the 9000 Gateways serve a key role within HPE Aruba Networking’s SD‑Branch solution, which unifies WLAN, LAN, SD‑WAN and security for distributed enterprises.



Features :

Versatile, Cost-effective Performance

• The HPE Aruba Networking 9000 Series Branch Gateways are compact edge appliances ideal for small enterprise or branch locations looking for enhanced security with optional integrated LTE connectivity.
• The gateway provides connectivity for up to 2,048 users or client devices with up to 6 Gbps of firewall throughput.
• It supports redundancy, clustering, and live upgrades for enhanced resiliency and high availability.
• The 9004-LTE model can a use high-speed LTE connection as either a dedicated or redundant WAN uplink for business continuity.
• IoT radio supports BLE technologies.

Flexible Deployments with Enhanced Security

• The HPE Aruba Networking 9000 Series Branch Gateways are ready for SD-Branch, WLAN, IPSec, and security use cases.
• Deploy as mobility controllers to increase wireless scalability and provide WLAN and LAN services such as Dynamic Segmentation, stateful firewall, and live upgrades.
• It is supported by the HPE Aruba Networking EdgeConnect SD-Branch solution that simplifies management of branch traffic. Gateways deployed in SD-WAN mode add role and identity-based intrusion detection and prevention capabilities (IDS/IPS) on top of existing security features.
• Offers enhanced security with Dynamic Segmentation to nearly eliminate the time-consuming and error-prone task of managing complex and static VLANs, ACLs, and subnets by dynamically assigning policies and keeping traffic secure and separated.
• Deep packet inspection provides greater application visibility and control. As a part of the policy enforcement firewall, the 9000 series consistently evaluates and improves performance and usage policies for over 3,800 applications.

AI-powered Cloud-based Management

• The HPE Aruba Networking 9000 Series Branch Gateways can be easily configured and managed using cloud-native HPE Aruba Networking Central that provides AI-powered insights, workflow automation, and robust security.
• Zero-touch provisioning simplifies deployment at branch sites that have few or no local IT resources.
• Wizard-based UI-driven workflows in HPE Aruba Networking Central NetConductor automate network design and policy creation, further streamlining network configuration and security operations from the cloud.
• The gateway supports WLAN and SD-WAN deployments with HPE Aruba Networking Central subscription licenses.

Lower Cost and Greater Efficiency with SD-Branch

• SD-branch technology provides a centrally-managed unified platform for SD-WAN, routing, security, LAN and Wi-Fi to deliver the ease of deployment, operations, and cost savings needed when managing large, distributed branch locations.
• The SD-Branch orchestrator seamlessly updates the overlay network across multiple branch locations, data centers, public clouds, and SaaS — delivering a consistent user experience and policy enforcement.
• Greater visibility into performance across every uplink in a branch to improve the reliability, re-routing traffic over a secondary link as necessary.
• Dynamic traffic steering based on roles, applications, and even IoT devices to prioritize traffic and improve user experience.
• Enhanced branch security with stateful application-aware firewall, Dynamic Segmentation, intrusion detection, web content filtering/classification and integration with third-party cloud security providers.



Specifications :

Ports : 4x 100/1000BASE-T ports

Certifications : FCC/ISED; RED Directive 2014/53/EU; Others: MIC, NCC, ANATEL, COFTEL, CCC

Input voltage : 12v DC, 2.5A AC-to-DC power adapter

Power consumption : 25W, maximum (with USB)

Mounting : Desktop (fanless), with optional mount rack tray

Weight : 1.24 kg (2.7 lb)

Dimensions : 3.82 x 19.9 x 15.3 cm (1.5 x 7.8 x 6.0 in)

Differentiator : Available everywhere except, US, Israel, Egypt and Japan
