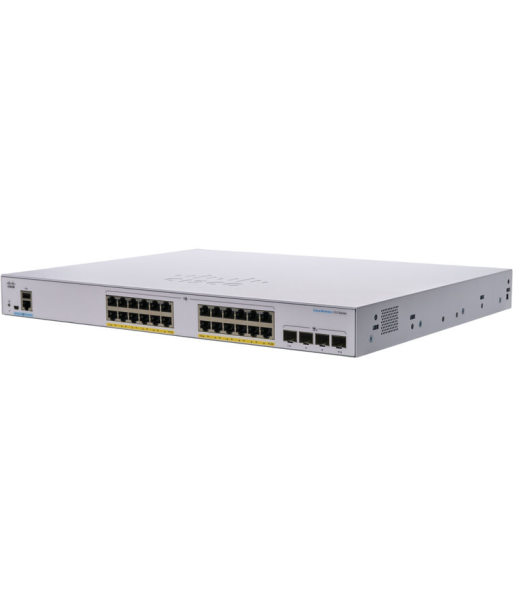

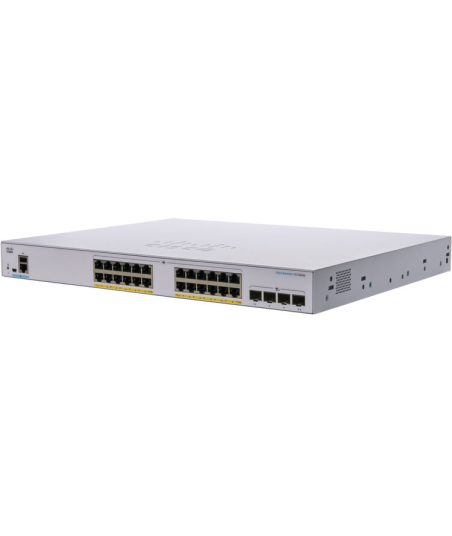

Cisco CBS250-24FP-4X-EU CBS250 Smart 24-port GE, Full PoE, 4x10G SFP+
24x 10/100/1000 PoE+ ports with 370W power budget , 4x 10 Gigabit SFP+ , Rack-mountable
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Cisco Business 250 Series Smart Switches
The Cisco Business 250 Series is the next generation of affordable switches that combine powerful performance and reliability with a complete suite of the features you need for a solid business network. These switches provide flexible management options, comprehensive security capabilities and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, Cisco Business 250 Series Switches provide the ideal solution at an affordable pricing point.
Specifications :
Feature | Description | ||||||||||
Performance | |||||||||||
Switching capacity and forwarding rateAll switches are wire-speed and nonblocking | Model | Capacity in millions of packets per second (mpps) (64-byte packets) | Switching capacity in gigabits per second (Gbps) | ||||||||
CBS250-8T-D | 11.90 | 16.0 | |||||||||
CBS250-24FP-4X | 95.23 | 128.0 | |||||||||
Layer 2 switching | |||||||||||
Spanning Tree Protocol (STP) | Standard 802.1d spanning tree supportFast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by defaultMultiple spanning tree instances using 802.1s (MSTP); 8 instances are supportedPer-VLAN Spanning Tree Plus (PVST+); 126 instances are supportedRapid PVST+ (RPVST+); 126 instances are supported | ||||||||||
Port grouping/link aggregation | Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● Up to 4 groups
● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)
|
||||||||||
VLAN | Support for up to 255 active VLANs simultaneouslyPort-based and 802.1Q tag-based VLANsManagement VLANGuest VLAN | ||||||||||
Voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices | ||||||||||
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) | Protocols for automatically propagating and configuring VLANs in a bridged domain | ||||||||||
IGMP (versions 1, 2, and 3) snooping | Internet Group Management Protocol (IGMP) limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported) | ||||||||||
IGMP querier | Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router | ||||||||||
HOL blocking | Head-of-Line (HOL) blocking prevention | ||||||||||
Loopback detection | Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP. | ||||||||||
Layer 3 routing | |||||||||||
IPv4 routing | Wire-speed routing of IPv4 packetsUp to 32 static routes and up to 16 IP interfaces | ||||||||||
IPv6 routing | Wire-speed routing of IPv6 packets | ||||||||||
Layer 3 interface | Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface | ||||||||||
Classless Interdomain Routing (CIDR) | Support for CIDR | ||||||||||
Dynamic Host Configuration Protocol (DHCP) relay at Layer 3 | Relay of DHCP traffic across IP domains | ||||||||||
User Datagram Protocol (UDP) relay | Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets | ||||||||||
Security | |||||||||||
Secure Sockets Layer (SSL) | SSL encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch | ||||||||||
Secure Shell (SSH) Protocol | SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported. | ||||||||||
IEEE 802.1X (authenticator role) | Remote Authentication Dial-In User Service (RADIUS) authentication, guest VLAN, single/multiple host mode, and single/multiple sessions | ||||||||||
STP loopback guard | Provides additional protection against Layer 2 forwarding loops (STP loops) | ||||||||||
Secure Core Technology (SCT) | Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received | ||||||||||
Secure Sensitive Data (SSD) | A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user | ||||||||||
Trustworthy systems | Trustworthy systems provide a highly secure foundation for Cisco productsRun-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC]) | ||||||||||
Port security | Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses | ||||||||||
RADIUS | Supports RADIUS authentication for management access. Switch functions as a client. | ||||||||||
Storm control | Broadcast, multicast, and unknown unicast | ||||||||||
DoS prevention | Denial-of-Service (DoS) attack prevention | ||||||||||
Multiple user privilege levels in CLI | Level 1, 7, and 15 privilege levels | ||||||||||
Access Control Lists (ACLs) | Support for up to 512 rulesDrop or rate limit based on source and destination MAC, VLAN ID or IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sidesTime-based ACLs supported | ||||||||||
Quality of service | |||||||||||
Priority levels | 8 hardware queues | ||||||||||
Scheduling | Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and class of service (802.1p/CoS) | ||||||||||
Class of service | Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based; Differentiated Services (DiffServ); classification and re-marking ACLs, trusted QoS | ||||||||||
Rate limiting | Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based | ||||||||||
Congestion avoidance | A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization | ||||||||||
Standards | |||||||||||
Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330 | ||||||||||
IPv6 | |||||||||||
IPv6 | IPv6 host modeIPv6 over EthernetDual IPv6/IPv4 stackIPv6 Neighbor Discovery (ND)IPv6 stateless address auto configurationPath Maximum Transmission Unit (MTU) discoveryDuplicate Address Detection (DAD)Internet Control Message Protocol (ICMP) version 6IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) supportUSGv6 and IPv6 Gold Logo certified | ||||||||||
IPv6 QoS | Prioritize IPv6 packets in hardware | ||||||||||
IPv6 ACL | Drop or rate limit IPv6 packets in hardware | ||||||||||
Multicast Listener Discovery (MLD v1/2) snooping | Deliver IPv6 multicast packets only to the required receivers | ||||||||||
IPv6 applications | Web/SSL, Telnet server/SSH, Ping, Traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), Simple Network Management Protocol (SNMP), Remote Authentication Dial-In User Service (RADIUS), Syslog, DNS client, DHCP client, DHCP autoconfig | ||||||||||
IPv6 RFCs supported | RFC 4443 (which obsoletes RFC 2463): ICMPv6RFC 4291 (which obsoletes RFC 3513): IPv6 address architectureRFC 4291: IPv6 Addressing ArchitectureRFC 2460: IPv6 SpecificationRFC 4861 (which obsoletes RFC 2461): Neighbor Discovery for IPv6RFC 4862 (which obsoletes RFC 2462): IPv6 Stateless Address AutoconfigurationRFC 1981: Path MTU DiscoveryRFC 4007: IPv6 Scoped Address ArchitectureRFC 3484: Default address selection mechanismRFC 5214 (which obsoletes RFC 4214): ISATAP tunnelingRFC 4293: Management Information Base (MIB) IPv6: Textual Conventions and General GroupRFC 3595: Textual Conventions for IPv6 Flow Label | ||||||||||
Green (power efficiency) | |||||||||||
Energy detect | Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link is up | ||||||||||
Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables | ||||||||||
EEE compliant (802.3az) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports | ||||||||||
Disable port LEDs | LEDs can be manually turned off to save on energy | ||||||||||
Time-based port operation | Link up or down based on user-defined schedule (when the port is administratively up) | ||||||||||
Time-based PoE | PoE power can be on or off based on user-defined schedule to save energy | ||||||||||
General | |||||||||||
Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes | ||||||||||
MAC table | 8K addresses | ||||||||||
Discovery | |||||||||||
Bonjour | The switch advertises itself using the Bonjour protocol | ||||||||||
Link Layer Discovery Protocol (LLDP) (802.1ab) with LLDP-MED extensions | Link Layer Discovery Protocol (LLDP) allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones | ||||||||||
Cisco Discovery Protocol | The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics using Cisco Discovery Protocol | ||||||||||
Power over Ethernet (PoE) | |||||||||||
802.3at PoE+ and 802.3af PoE delivered over any of the RJ-45 ports within the listed power budgets | The following switches support 802.3at PoE+, 802.3af, and Cisco prestandard (legacy) PoE. Maximum power of 30.0W to any 10/100 or Gigabit Ethernet port, until the PoE budget for the switch is reached. The total power available for PoE per switch is as follows: | ||||||||||
Model | Power dedicated to PoE | Number of ports that support PoE | |||||||||
CBS250-24FP-4X | 370W | 24 | |||||||||
PoE Powered Device (PD) | Select compact switch models can work as PoE Powered Device (PD) and be powered by upstream PoE switches.When AC power is connected and functioning correctly, it is preferred over PoE power. The PoE power can function as a backup to the AC power source or be used as the sole power source for the switch. | ||||||||||
Model | Power option | ||||||||||
CBS250-8T-D | 1 x PoE input (802.3af) on port 1 or AC power | ||||||||||
Hardware | |||||||||||
Power consumption (worst case) | Model | System power consumption | Power consumption (with PoE) | Heat dissipation (BTU/hr) | |||||||
CBS250-8T-D | 110V=7.6W220V=7.6W | N/A | 25.93 | ||||||||
CBS250-24FP-4X | 110V=47.14W220V=47.01W | 110V=451.8W220V=437.4W | 1,543.99 | ||||||||
Ports | Model name | Total system ports | RJ-45 ports | Combo ports (RJ-45 + SFP) | |||||||
CBS250-8T-D | 8 Gigabit Ethernet | 8 Gigabit Ethernet | – | ||||||||
CBS250-24FP-4X | 24 Gigabit Ethernet + 4 10 Gigabit Ethernet |
24 Gigabit Ethernet | 4 SFP+ | ||||||||
Console port | Cisco Standard RJ45 console port**Not available on CBS250-8T-D and CBS250-8PP-D | ||||||||||
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management | ||||||||||
Buttons | Reset button | ||||||||||
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T | ||||||||||
LEDs | System, Link/Act, PoE, Speed | ||||||||||
Flash | 256 MB | ||||||||||
CPU | 800 MHz ARM | ||||||||||
DRAM | 512 MB | ||||||||||
Packet buffer | All numbers are aggregate across all ports because the buffers are dynamically shared: | ||||||||||
Model name | Packet buffer | ||||||||||
CBS250-8T-D | 1.5 MB | ||||||||||
CBS250-24FP-4X | 1.5 MB | ||||||||||
Minimum requirements | |||||||||||
● Web browser: Chrome, Firefox, Edge, Safari
● Category 5e Ethernet network cable
● TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed
|
Data sheet
- Warranty
- Last Date Hardwae Support 31 Oct 2029
