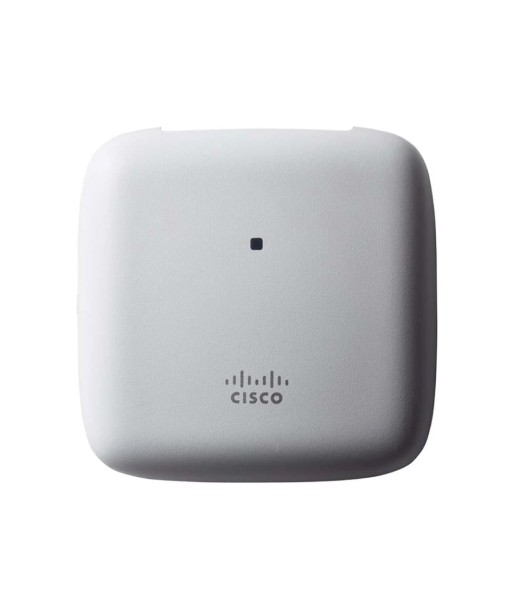

Cisco CBW140AC-S Cisco Business 140AC Access Point
฿3,970.00
Tax included
CBW140AC 802.11ac 2x2 Wave 2 Access Point Ceiling Mount
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Cisco Business 140AC Access Point
The Cisco Business 140AC Access Point delivers industry-leading wireless performance with support for the latest Wi-Fi standard, IEEE’s 802.11ac Wave 2 (Figure 1). It also meets the growing flexibility requirements of wireless networks by introducing mesh technology—all while delivering a simple user experience.
The 140AC access point extends coverage and capacity to Wi-Fi clients such as smartphones, tablets, and high-performance laptops that have integrated 802.11ac Wave 1 or Wave 2 support.
Features and benefits
By adhering to the 802.11ac Wave 2 standard, the Cisco Business 140AC Access Point delivers a data rate of up to 867 Mbps on its 5-GHz radio. This exceeds the data rates offered by access points that support the 802.11n standard. It also enables a total aggregate dual-radio data rate of up to 1 Gbps, providing the necessary foundation to stay ahead of the performance expectations and needs of wireless users.
In recent years, small businesses have increasingly preferred wireless access as the principal form of network connectivity. Along with this shift, there is an expectation that wireless should enable a high-performance experience. The Cisco Business 140AC Access Point delivers industry-leading performance for highly secure and reliable wireless connections, for a optimal end-user experience.
| Feature | Benefits |
| MU-MIMO | Multi-User (MU) Multiple-Input Multiple-Output (MU-MIMO) technology allows transmission of data to multiple 802.11ac Wave 2–capable clients simultaneously to improve the client experience. Prior to MU-MIMO, 802.11n and 802.11ac Wave 1 access points could transmit data to only one client at a time, typically referred to as Single-User MIMO (SU‑MIMO).802.11ac Wave 2 with 2x2:2 MIMO technology uses two spatial streams when operating in SU-MIMO or MU-MIMO mode, offering 867-Mbps rates for more capacity and reliability than competing access points. |
| Simplified management | Deploy and configure multiple Cisco Business access points and mesh extenders easily without a physical controller, using Cisco Business Mobile app . Optional multisite remote management is available through the Cisco FindIT Network Management. |
| Mesh technology support | Mix and match Cisco Business mesh extenders or access points to increase WiFi coverage throughout your business. |
| Flexible deployment | Flexible deployment models supporting multiple concurrent use cases required by small businesses, including point of sale systems, surveillance cameras, guest access, and more. |
Specifications :
| Item | Specification | ||
| Authentication and security |
● Wi-Fi Protected Access 2 (WPA2) WPA3 is coming in a post–Frame Check Sequence (FCS) release
● 802.1X, RADIUS Authentication, Authorization, and Accounting (AAA)
● Segmentation via VLANs (up to 16)
● 802.11r and 802.11i
● Guest network can also authenticate against: Google and Facebook
|
||
| Maximum clients |
● Maximum number of associated wireless clients: 200 per Wi-Fi radio, for a total of 400 clients per access point, or 1000 in a system
|
||
| Maximum # of Access Points |
● 50
● Recommended up to 25
|
||
| Max # of Mesh Extenders |
● Maximum number of associated Cisco Business mesh extenders: 25 per Access Point, up to 8 hops
|
||
| 802.11ac |
● 2x2 single-user/multi-user MIMO with two spatial streams, up to 867 Mbps in 5GHz
● 20-, 40-, and 80-MHz channels
● Dynamic Frequency Selection (DFS)
|
||
| Ethernet ports |
● Authentication with 802.1X or MAC filtered
● Dynamic VLAN or per port
● Traffic locally switched or tunneled back to Master AP
|
||
| Data rates supported | 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps | ||
| 802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps | |||
| 802.11n data rates on 2.4 GHz: 6.5 to 300 Mbps (MCS0-MCS15, HT 20/40) | |||
| 802.11ac data rates on 5 GHz: 6.5 to 867 Mbps (MCS0-MCS9) | |||
| Maximum number of nonoverlapping channels | A (A regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
B (B regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.720 GHz; 12 channels
● 5.745 to 5.825 GHz; 5 channels
C (C regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.825 GHz; 5 channels
D (D regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
F (F regulatory domain):
(excludes 5.600 to 5.640 GHz) ● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.805 GHz; 4 channels
G (G regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.865 GHz; 7 channels
H (H regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
I (I regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
|
K (K regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.620 GHz; 7 channels
● 5.745 to 5.805 GHz; 4 channels
N (N regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.660 to 5.700 GHz; 3 channels
● S5.745 to 5.805 GHz; 4 channels
S (S regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
● 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.280 to 5.320 GHz; 3 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Z (Z regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 8 channels
(excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
|
|
| Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain. | |||
| Available transmit power settings | 2.4 GHzUp to 20 dBm | 5 GHzUp to 20 dBm | |
| Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details. | |||
| Integrated antennas |
● 2.4 GHz, gain 2 dBi
● 5 GHz, gain 4 dBi
|
||
| Interfaces |
● 1x Gigabit Ethernet (10/100/1000BASE-T autosensing), Power over Ethernet (PoE)
● RJ-45 console port (not functional)
|
||
| Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
|
||
| Dimensions (W x L x H) |
● Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33 mm)
|
||
| Weight |
● Access point without mounting bracket or any other accessories: 14 oz (400 g)
|
||
| Environmental |
● Operating
◦ Temperature: 32° to 104°F (0° to 50°C)◦ Humidity: 10% to 90% (noncondensing)◦ Maximum altitude: 9843 ft (3000 m) at 40°C
● Nonoperating (storage and transportation)
◦ Temperature: –22° to 158°F (-30° to 70°C)◦ Humidity: 10% to 90% (noncondensing)◦ Maximum altitude: 15,000 ft (4500 m) at 25°C |
||
| System |
● 1 GB DRAM, 256 MB flash
● 710-MHz quad core processor
|
||
| Powering options |
● 802.3af/at Ethernet switch; a Cisco Business switch with PoE is recommended
● Optional Cisco Business PoE injector
|
||
| Power draw |
● 8.3W (maximum, on PoE)
|
||
| Mounting and physical security | Included with the access point:
● Mounting bracket
● Torx security screw
● Ceiling rail mount clip
|
||
| Warranty | Cisco Business limited lifetime hardware warrantyFree software updates, no service contract required | ||
| Compliance |
● Safety:
◦ UL 60950-1◦ CAN/CSA-C22.2 No. 60950-1◦ UL 2043◦ IEC 60950-1◦ EN 60950-1
● Radio approvals:
◦ FCC Part 15.247, 15.407◦ RSS-247 (Canada)◦ EN 300.328, EN 301.893 (Europe)◦ ARIB-STD 66 (Japan)◦ ARIB-STD T71 (Japan)◦ EMI and susceptibility (Class B)◦ FCC Part 15.107 and 15.109◦ ICES-003 (Canada)◦ VCCI (Japan)◦ EN 301.489-1 and -17 (Europe)◦ EN 50385
● IEEE standards:
◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d◦ IEEE 802.11ac
● Security:
◦ 802.11i, WPA2, WAP3, WPA◦ 802.1X◦ AES
● Extensible Authentication Protocol (EAP) types:
◦ EAP-Transport Layer Security (TLS)◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2◦ EAP-Flexible Authentication via Secure Tunneling (FAST)◦ PEAP v1 or EAP-Generic Token Card (GTC)◦ EAP-Subscriber Identity Module (SIM)
● Multimedia:
◦ Wi-Fi Multimedia (WMM)
● Other:
◦ FCC Bulletin OET-65C◦ RSS-102 |
||
CBW140AC-S
100 Items
Data sheet
- Warranty
- Lifetime Warranty (5 Years (EOS/EOL)
