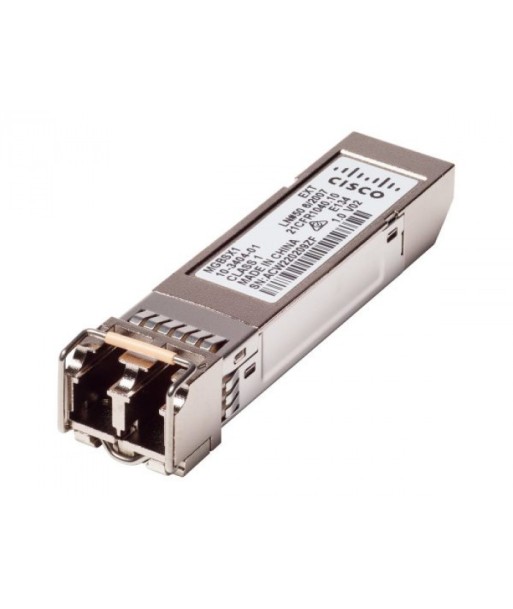

Cisco MGBSX1 Gigabit Ethernet SX Mini-GBIC SFP Transceiver
฿3,840.00
Tax included
1000BASE-SX SFP transceiver for multimode fiber, 850 nm wavelength, supports up to 500 m
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Cisco MGE SFP Modules
Cisco® MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) transceivers are easy-to-install modules that provide a simple way to add fiber connectivity or an extra Gigabit Ethernet port to your Cisco 100, 200, 300, and 500 Series switches. The transceivers are available for single-mode or multimode fiberoptic cabling and can support distances from 100 meters up to 40 kilometers.
The Cisco MGE transceivers provide fast, reliable connectivity between switches located on different floors, in separate buildings, or on a small campus network needing connectivity between sites. These transceivers can support Gigabit Ethernet applications. Figures 1 and 2 show the fiber-optic and copper transceivers. Table 1 lists the transceiver modules.
Highlights
-
Adds fiber-optic connectivity to Cisco 100 to 500 Series switches
-
High-performance link for connecting networks within a building or small business area
-
Easy removal with an integrated spring latch
-
Hot swappable to maintain network availability
-
Flexibility of media and interface choice on a port-by-port basis, so you can “pay as you populate”
Features
-
Built-in spring latch for easy module removal
-
Hot swappable
-
Low-insertion-loss duplex LC receptacle
-
Low electromagnetic interference (FCC Part 15, Class B) for clear communications
-
Meets FDA and International Electrotechnical Commission (IEC) eye safety standards
Specifications :
|
Specifications |
|
|
Media |
MGBLH1: Single-mode fiber (SMF) MGBLX1: Single-mode fiber (SMF) MGBSX1: Multimode fiber (MMF) MGBT1: Category 5e Unshielded Twisted Pair (UTP) |
|
Application |
MGBLH1: 1000BASE-LH MGBLX1: 1000BASE-LX MGBSX1: 1000BASE-SX MGBT1: 1000BASE-T |
|
Connector type |
MGBLH1: Duplex LC MGBLX1: Duplex LC MGBSX1: Duplex LC MGBT1: RJ-45 |
|
Wavelength typical (Tx) |
MGBLH1: 1310 nm MGBLX1: 1310 nm MGBSX1: 850 nm MGBT1: N/A |
|
Wavelength range (Rx) |
MGBLH1: 1310 nm MGBLX1: 1310 nm MGBSX1: 850 nm MGBT1: N/A |
|
Performance |
|
|
Maximum distance |
MGBLH1: Up to 40 km MGBLX1: Up to 10 km MGBSX1: Up to 500 m MGBT1: Up to 100 m |
|
Average output power |
MGBLH1: -4 dBm to 0 dBm MGBLX1: -9.5 dBm to -3 dBm MGBSX1: -9.5 dBm to -4 dBm MGBT1: N/A |
|
Receiver sensitivity |
MGBLH1: -25 dBm (typ) MGBLX1: -20 dBm (typ) MGBSX1: -20 dBm (typ) MGBT1: N/A |
|
Receiver overload |
MGBLH1: -3 dBm MGBLX1: -3 dBm MGBSX1: -0 dBm MGBT1: N/A |
|
Environmental |
|
|
Dimensions W x H x D |
MGBLH1: 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) MGBLX1: 13.4 x 8.5 x 55.7 mm (0.53 x 0.33 x 2.19 in.) MGBSX1: 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) MGBT1: 13.4 x 8.5 x 66 mm (0.53 x 0.33 x 2.60 in.) |
|
Unit weight |
0.018 kg (0.63 oz) |
|
Power |
1W (max) |
|
Operating temperature |
32º to 158ºF (0º to 70ºC) |
|
Storage temperature |
-40º to 185ºF (-40º to 85ºC) |
|
Operating humidity |
10% to 85% noncondensing |
|
Storage humidity |
5% to 90% noncondensing |
|
Standards |
|
|
Compliance |
FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B |
|
Safety |
FDA 21 CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1, 2 |
