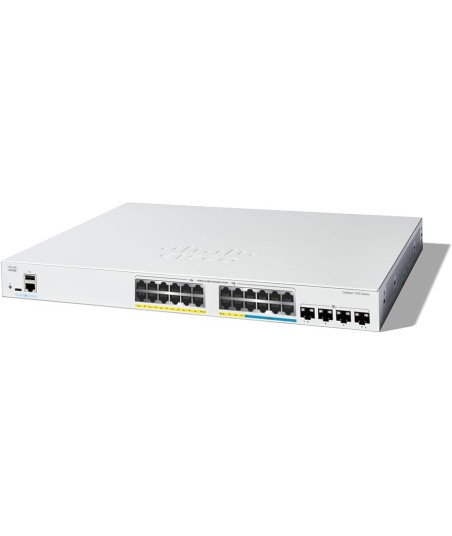

Cisco C1300-24MGP-4X Catalyst 1300 8-port 2.5GE, 16-port GE, PoE, 4x10G SFP+

฿52,660.00

Tax included

16 x 10/100/1000 PoE+ ports , 8 x 2.5G PoE+ ports , 4 x 10 Gigabit SFP+ , 375W PoE power budget , Rack-mountable

Quantity

Security policy

(edit with the Customer Reassurance module)

Delivery policy

(edit with the Customer Reassurance module)

Return policy

(edit with the Customer Reassurance module)

Cisco Catalyst 1300 Series Switches

The Cisco Catalyst 1300 Series Switches are fixed, managed, enterprise-class Gigabit Ethernet Layer 3 switches designed for small and medium-sized business and branch offices. These simple, flexible, and secure switches are ideal for deployment out of the wiring closet. The Catalyst 1300 Series operates on customized Linux OS software, with an intuitive dashboard that simplifies network setup and advanced features that accelerate digital transformation, while pervasive security protects business-critical transactions. The 1300 Series switches provide the ideal combination of affordability and capabilities for branches and growing networks and help you create a more efficient, better-connected workforce. When your business needs advanced networking features and security for the digital transformation, yet value is still a top consideration, you’re ready for the Cisco Catalyst 1300 Series Switches.

Cisco Catalyst 1300 Series switches

Whether you need a basic high-performance network to connect employee computers or a solution to deliver data, voice, and video services, the Cisco Catalyst 1300 Series Switches offer a solution to meet your needs. Possible deployment scenarios include:

Secure office connectivity: The 1300 Series switches can simply and securely connect employees working in branch offices with each other and with all of the servers, printers, and other networking devices they use. High performance and reliable connectivity help speed file transfers and data processing, improve network uptime, and keep your employees connected and productive.
Unified communications: As a managed network solution, the 1300 Series switches provide the performance and advanced traffic-handling intelligence you need to deliver all communications and data over a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for businesses. The 1300 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products, providing a complete business solution.
Highly secure guest connectivity: The 1300 Series switches let you extend highly secure network connectivity to guests in a variety of settings, such as a hotel, an office waiting room, or any other area open to nonemployee users. Using powerful but easy-to-configure security and traffic segmentation capabilities, you can isolate your vital business traffic from guest services and keep guests’ network sessions private from each other.

Specifiations :

Layer 2 switching

Spanning Tree Protocol

Standard 802.1d Spanning Tree support

Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported

Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported

Port grouping/link aggregation

● Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

● Up to 8 groups

● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

VLAN

Support for up to 4093 VLANs simultaneously

Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN

Management VLAN

Private VLAN with promiscuous, isolated, and community port

Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks Guest VLAN, unauthenticated VLAN

Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication Customer premises equipment (CPE) VLAN

Auto surveillance VLAN (ASV)

Voice VLAN

Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices

Multicast TV VLAN

Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)

VLAN translation

Support for VLAN one-to-one mapping, in which customer VLANs (C-VLANs) on an edge interface are mapped to service provider VLANs (S-VLANs), and the original C-VLAN tags are replaced by the specified S-VLAN

Q-in-Q

VLANs transparently cross a service provider network while isolating traffic among customers

Selective Q-in-Q

Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs

Selective Q-in-Q also allows configuring of the Ethertype (Tag Protocol Identifier [TPID]) of the S-VLAN tag

Layer 2 protocol tunneling over Q-in-Q is also supported

Generic VLAN Registration Protocol (GVRP)/Generic Attribute Registration Protocol (GARP)

GVRP and GARP enable automatic propagation and configuration of VLANs in a bridged domain

Unidirectional Link

UDLD monitors physical connections to detect unidirectional links caused by incorrect

Detection (UDLD)

wiring or cable/port faults to prevent forwarding loops and blackholing of traffic in switched networks

DHCP relay at Layer 2

Relay of DHCP traffic to a DHCP server in a different VLAN; works with DHCP Option 82

Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping

IGMP limits bandwidth-intensive multicast traffic to only the requesters; it supports 2000 multicast groups (source-specific multicasting is also supported)

IGMP querier

IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router

IGMP proxy

The IGMP proxy provides a mechanism for multicast forwarding based on IGMP membership information without the need for more complicated multicast routing protocols

Head-of-Line (HOL) blocking

HOL blocking prevention

Loopback detection

Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP

Layer 3

IPv4 routing

Wire-speed routing of IPv4 packets

Up to 990 static routes and up to 128 IP interfaces

IPv6 routing

Wire-speed routing of IPv6 packets

Layer 3 interface

Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface

Classless Interdomain Routing (CIDR)

Support for CIDR

Routing Information Protocol (RIP) v2

Support for RIP v2 for dynamic routing

Policy-Based Routing (PBR)

Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL)

DHCP server

Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes

Support for DHCP options

DHCP relay at Layer 3

Relay of DHCP traffic across IP domains

User Datagram Protocol (UDP) relay

Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets

Stacking

Hardware stacking

Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover

Stacking is supported on the following models:

● Family 1: C1300-16P-4X, C1300-24T-4X, C1300-24P-4X, C1300-24FP-4X, C1300-48T-4X, C1300-48P-4X, C1300-48FP-4X, C1300-8MGP-2X, C1300-24MGP-4X, C1300-48MGP-4X

● Family 2: C1300-12XT-2X, C1300-12XS, C1300-16XTS, C1300-24XS, C1300-24XT, C1300-24XTS

● PIDs from the same Family can be stacked together. Cross-stacking between Families is not supported.

High availability

Fast stack failover delivers minimal traffic loss. Support for LAG across multiple units in a stack

Plug-and-play stacking configuration/management

Active/standby for resilient stack control Auto-numbering

Hot swap of units in stack

Ring and chain stacking options, auto stacking port speed, flexible stacking port options

High-speed stack interconnects

Cost-effective high-speed 10 Gigabit Ethernet fiber interfaces

Security

Secure Shell (SSH) Protocol

SSH is a secure replacement for Telnet traffic. Secure Copy Protocol (SCP) also uses SSH. SSH v1 and v2 are supported

Secure Sockets Layer (SSL)

SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch

IEEE 802.1X (authenticator role)

802.1X: RADIUS authentication and accounting, MD5 hash, guest VLAN, unauthenticated VLAN, single/multiple host mode, and single/multiple sessions

Supports time-based 802.1X, dynamic VLAN assignment, and MAC authentication

IEEE 802.1X supplicant

A switch can be configured to act as a supplicant to another switch. This enables extended secure access in areas outside the wiring closet (such as conference rooms)

Web-based authentication

Web-based authentication provides network admission control through a web browser to any host devices and operating systems

STP Bridge Protocol Data Unit (BPDU) Guard

A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops

STP Root Guard

Prevents edge devices not in the network administrator’s control from becoming STP root nodes

STP loopback guard

Provides additional protection against Layer 2 forwarding loops (STP loops)

DHCP snooping

Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP servers

IP Source Guard (IPSG)

When IPSG is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing

Dynamic ARP Inspection (DAI)

The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination addresses in the ARP packet. This prevents man-in-the-middle attacks

IP/MAC/port binding (IPMB)

The preceding features (DHCP snooping, IPSG, and DAI) work together to prevent Denial-of-Service (DoS) attacks in the network, thereby increasing network availability

Secure Core Technology (SCT)

Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received

Secure Sensitive Data (SSD)

A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user

Trustworthy systems

Trustworthy systems provide a highly secure foundation for Cisco products

Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])

Private VLAN

Provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users’ traffic; supports multiple uplinks.

Layer 2 isolation Private VLAN Edge (PVE)

PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN; supports multiple uplinks

Port security

Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses

RADIUS/TACACS+

Supports RADIUS and TACACS authentication. Switch functions as a client

RADIUS accounting

The RADIUS accounting functions allow data to be sent at the start and end of services indicating the number of resources (such as time, packets, bytes, and so on) used during the session

Storm control

Broadcast, multicast, and unknown unicast

DoS prevention

DoS attack prevention

Multiple user privilege levels in CLI

Level 1, 7, and 15 privilege levels

ACLs

Support for up to 1024 rules

Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides

Time-based ACLs supported

Quality of service

Priority levels

8 hardware queues

Scheduling

Strict priority and Weighted Round-Robin (WRR)

Class of service

Port-based, 802.1p VLAN priority-based, IPv4/IPv6 IP precedence/Type of Service (ToS)/DSCP-based, Differentiated Services (DiffServ), classification and remarking ACLs, trusted QoS

Queue assignment based on DSCP and Class of Service (802.1p/CoS)

Rate limiting

Ingress policer; egress shaping and rate control per VLAN, per port, and flow based; dual-rate 3-color (2R3C) policing

Congestion avoidance

A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization

iSCSI traffic optimization

A mechanism for giving priority to iSCSI traffic over other types of traffic

Standards

IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab

1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3ae 10 Gbps Ethernet over fiber for LAN, IEEE 802.3an 10GBASE-T 10 Gbps Ethernet over copper twisted pair cable, IEEE 802.3x Flow Control, IEEE 802.1D (STP, GARP, and GVRP), IEEE 802.1Q/p VLAN, IEEE 802.1w Rapid STP, IEEE

802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, IEEE 802.1AB Link Layer Discovery Protocol, IEEE 802.3az Energy Efficient Ethernet, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 826, RFC 879, RFC 896, RFC

854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC

951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC

1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC

1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC

2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC

2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC

3164, RFC 3176, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC

4330

IPv6

IPv6 host mode, IPv6 over Ethernet, dual IPv6/IPv4 stack

IPv6 neighbor and router discovery (ND), IPv6 stateless address auto-configuration, path Maximum Transmission Unit (MTU) discovery

Duplicate Address Detection (DAD), ICMP version 6 DHCPv6 stateful client

IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) tunnel support

IPv6 QoS

Prioritize IPv6 packets in hardware

IPv6 ACL

Drop or rate-limit IPv6 packets in hardware

IPv6 First Hop Security

RA guard

ND inspection DHCPv6 guard

Neighbor binding table (snooping and static entries)

Neighbor binding integrity check

Multicast Listener Discovery (MLD v1/2) snooping

Deliver IPv6 multicast packets only to the required receivers

MLD proxy

The MLD proxy provides a mechanism for multicast forwarding based on MLD membership information without the need for more complicated multicast routing protocols

IPv6 applications

Web/SSL, Telnet server/SSH, ping, traceroute, Simple Network Time Protocol (SNTP), Trivial File Transfer Protocol (TFTP), SNMP, RADIUS, syslog, DNS client, Telnet client, DHCP client, DHCP auto-config, IPv6 DHCP relay, TACACS+

IPv6 RFCs supported

RFC 4443 (which obsoletes RFC 2463): ICMP version 6

RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture RFC 4291: IPv6 addressing architecture

RFC 2460: IPv6 specification

RFC 4861 (which obsoletes RFC 2461): neighbor discovery for IPv6

RFC 4862 (which obsoletes RFC 2462): IPv6 stateless address auto-configuration RFC 1981: path MTU discovery

RFC 4007: IPv6 scoped address architecture RFC 3484: default address selection mechanism

RFC 5214 (which obsoletes RFC 4214): ISATAP tunneling

RFC 4293: MIB IPv6: textual conventions and general group RFC 3595: textual conventions for IPv6 flow label

General

Jumbo frames

Frame sizes up to 9000 bytes. The default MTU is 2000 bytes

MAC table

16,000 addresses

Chip guard

Detects tampering attempts and responds during bootup

Boot integrity

Boot integrity visibility allows Cisco's platform identity and software integrity information to be visible and actionable

Power over Ethernet (PoE)

802.3af PoE, 802.3at PoE+

The following switches support 802.3at PoE+, 802.3af, and Cisco pre-standard (legacy) PoE. The total power available for PoE per switch is as follows:

Model

Power dedicated to PoE

Number of ports that support PoE

C1300-8P-E-2G

67W

C1300-8FP-2G

120W

C1300-16P-2G

120W

C1300-16FP-2G

240W

C1300-24P-4G

195W

C1300-24FP-4G

375W

C1300-48P-4G

375W

C1300-48FP-4G

740W

C1300-16P-4X

120W

C1300-24P-4X

195W

C1300-24FP-4X

375W

C1300-48P-4X

375W

C1300-48FP-4X

740W

C1300-8MGP-2X

120W

C1300-24MGP-4X

375W

C1300-48MGP-4X

740W

Hardware

Ports

Model

Total system ports

RJ-45 ports

Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP])

C1300-8T-E-2G

10 x Gigabit Ethernet

8 x Gigabit Ethernet

2 x Gigabit Ethernet combo

C1300-8P-E-2G

10 x Gigabit Ethernet

8 x Gigabit Ethernet

2 x Gigabit Ethernet combo

C1300-8FP-2G

10 x Gigabit Ethernet

8 x Gigabit Ethernet

2 x Gigabit Ethernet combo

C1300-16T-2G

18 x Gigabit Ethernet

16 x Gigabit Ethernet

2 x SFP

C1300-16P-2G

18 x Gigabit Ethernet

16 x Gigabit Ethernet

2 x SFP

C1300-16FP-2G

18 x Gigabit Ethernet

16 x Gigabit Ethernet

2 x SFP

C1300-24T-4G

28 x Gigabit Ethernet

24 x Gigabit Ethernet

4 x SFP

C1300-24P-4G

28 x Gigabit Ethernet

24 x Gigabit Ethernet

4 x SFP

C1300-24FP-4G

28 x Gigabit Ethernet

24 x Gigabit Ethernet

4 x SFP

C1300-48T-4G

52 x Gigabit Ethernet

48 x Gigabit Ethernet

4 x SFP

C1300-48P-4G

52 x Gigabit Ethernet

48 x Gigabit Ethernet

4 x SFP

C1300-48FP-4G

52 x Gigabit Ethernet

48 x Gigabit Ethernet

4 x SFP

C1300-16P-4X

16 x Gigabit Ethernet + 4 x 10G

16 x Gigabit Ethernet

4 x SFP+

C1300-24T-4X

24 x Gigabit Ethernet + 4 x 10G

24 x Gigabit Ethernet

4 x SFP+

C1300-24P-4X

24 x Gigabit Ethernet + 4 x 10G

24 x Gigabit Ethernet

4 x SFP+

C1300-24FP-4X

24 x Gigabit Ethernet + 4 x 10G

24 x Gigabit Ethernet

4 x SFP+

C1300-48T-4X

48 x Gigabit Ethernet + 4 x 10G

48 x Gigabit Ethernet

4 x SFP+

C1300-48P-4X

48 x Gigabit Ethernet + 4 x 10 G

48x Gigabit Ethernet

4x SFP+

C1300-48FP-4X

48 Gigabit Ethernet + 4 x 10G

48 x Gigabit Ethernet

4 x SFP+

C1300-8MGP-2X

4 Gigabit Ethernet + 4 x 2.5G + 2 x 10G

4 x Gigabit Ethernet + 4 x 2.5G

2 x SFP+

C1300-24MGP-4X

16 Gigabit Ethernet + 8 x 2.5G + 4 x 10G

16 Gigabit Ethernet + 8 x 2.5G

4 x SFP+

C1300-48MGP-4X

32 Gigabit Ethernet + 16 x 2.5G + 4 x 10G

32Gigabit Ethernet + 16 x 2.5G

4 x SFP+

C1300-12XT-2X

12 10G Copper + 2 x 10G SFP+ + 1 x GE OOB management

12 x 10G Copper

2 x SFP+

C1300-12XS

10 x 10G SFP+ + 2 x 10G copper/SFP+ combo + 1 x GE OOB management

10 x 10G SFP+

2 x 10G copper/SFP+ combo

C1300-16XTS

8 x 10G copper + 8 x 10G SFP+ + 1 x GE OOB management

8 x 10G copper

8 x SFP+

C1300-24XS

20 x 10G SFP+ + 4 x 10G copper/SFP+ combo + 1 x GE OOB management

20 x 10G SFP+

4 x 10G copper/SFP+ combo

C1300-24XT

20 x 10G copper + 4 x 10G copper/SFP+ combo + 1 x GE OOB management

20 x 10G copper

4 x 10G copper/SFP+ combo

C1300-24XTS

12 x 10G copper + 12 x 10G SFP+ + 1 x GE OOB management

12x10G Copper

12 x 10G SFP+

Console port

Cisco standard RJ-45 console port and USB Type C port

USB port

USB Type C port on the front panel of the switch for easy file and image management as well as console port

Buttons

Reset button

Cabling type

Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

LEDs

System, Link/Act, PoE, Speed

Flash

512 MB

CPU

ARM dual-core at 1.4 GHz

DRAM

1 GB DDR4

Supported SFP modules

SKU

Media

Speed

Maximum distance

MGBSX1

Multimode fiber

1000 Mbps

500 m

MGBLX1

Single-mode fiber

1000 Mbps

10 km

MGBLH1

Single-mode fiber

1000 Mbps

40 km

MGBT1

UTP Cat 5e

1000 Mbps

100 m

GLC-SX-MMD

Multimode fiber

1000 Mbps

550 m

GLC-EX-SMD

Single-mode fiber

1000 Mbps

40 km

GLC-ZX-SMD

Single-mode fiber

1000 Mbps

70 km

GLC-LH-SMD

Single-mode fiber

1000 Mbps

10 km

GLC-BX-U

Single-mode fiber

1000 Mbps

10 km

GLC-BX-D

Single-mode fiber

1000 Mbps

10 km

GLC-TE

UTP Cat 5e

1000 Mbps

100 m

CWDM-SFP-1470

Single-mode fiber

1000 Mbps

80 km

CWDM-SFP-1490

Single-mode fiber

1000 Mbps

80 km

CWDM-SFP-1510

Single-mode fiber

1000 Mbps

80 km

CWDM-SFP-1530

Single-mode fiber

1000 Mbps

80 km

CWDM-SFP-1550

Single-mode fiber

1000 Mbps

80 km

CWDM-SFP-1570

Single-mode fiber

1000 Mbps

80 km

CWDM-SFP-1590

Single-mode fiber

1000 Mbps

80 km

CWDM-SFP-1610

Single-mode fiber

1000 Mbps

80 km

SFP-H10GB-CU1M

Copper coax

10 Gigabit Ethernet

1 m

SFP-H10GB-CU3M

Copper coax

10 Gigabit Ethernet

3 m

SFP-H10GB-CU5M

Copper coax

10 Gigabit Ethernet

5 m

SFP-10G-SR

Multimode fiber

10 Gigabit Ethernet

26 m to 400 m

SFP-10G-LR

Single-mode fiber

10 Gigabit Ethernet

10 km

SFP-10G-SR-S

Multimode fiber

10 Gigabit Ethernet

26 m to 400 m

SFP-10G-LR-S

Single-mode fiber

10 Gigabit Ethernet

10 km

SFP-10G-ER

Single-mode fiber

10 Gigabit Ethernet

40 km

SFP-10G-ER-S

Single-mode fiber

10 Gigabit Ethernet

40 km

SFP-10G-T-X

UTP CAT6A/CAT7 or better

10 Gigabit Ethernet

30 m

SFP-10G-BXD-I

Single-mode fiber

10 Gigabit Ethernet

10 km

SFP-10G-BXU-I

Single-mode fiber

10 Gigabit Ethernet

10 km

SFP-H10GB-CU1-5M
