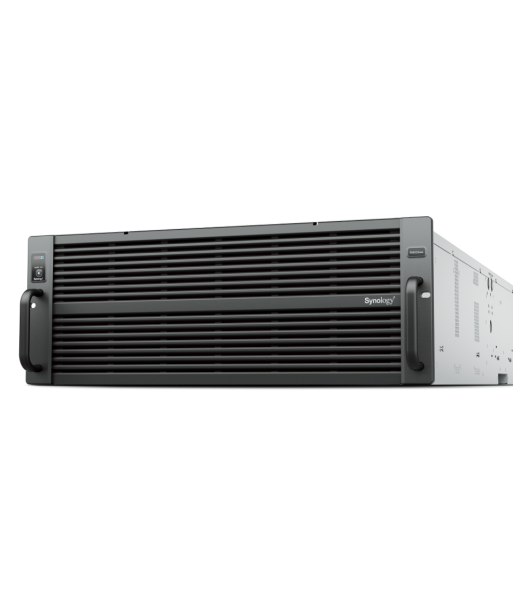

Synology RX6025sas 60-Bay SAS Expansion Units

฿297,160.00
Tax included

60-bay SAS expansion unit for HD6500

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

RX6025sas



The 4U RX6025sas enables seamless storage expansion for Synology’s largest server unit, the 60-bay HD6500. Achieve even more storage availability with up to 60 additional drive bays through quick installation and intuitive setup in Synology DiskStation Manager (DSM). Add up to four RX6025sas units to tackle largescale applications requiring cold or warm storage, maintaining the highest level of service availability through clever hardware and software solutions.



Hightlights

  • On-The-Fly Installation :  Add up to 60 additional 3.5" Synology SAS HDDs or 2.5" Synology SATA SSDs with minimal setup and disruption.

  • Simple Configuration : Leverage new storage in minutes using Synology DSM’s unified tools.

  • Service Availability Safeguards : Redundant components and support for SAS multipathing keeps downtime at bay.

  • Designed for Synology Drives : Synology drives are rigorously stress-tested for the upmost reliability and compatibility.

  • Long-Term Support : Backed by Synology’s 5-year limited warranty.



Specificatioons :

Applied Models

Supports creating volumes across different units

HD6500

Notes

  • DSM version requirement: DSM 7.2.2-72806 Update 2 or later version.

  • To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.

Storage

Drive Bays

60

Drive Type (See all supported drives)

  • 3.5" SAS HDD

  • 2.5" SATA SSD

Hot Swappable Drive*

Yes

Notes

  • Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list. The use of non-validated components may limit certain functionality and result in data loss and system instability.

  • To install 2.5" SATA SSDs, optional 2.5" drive trays (R5) must be purchased separately. Learn more

  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

Expansion Port

2

Appearance

Size (Height x Width x Depth)

176 mm x 438 mm x 985 mm

Size (Height x Width x Depth) (with server ears)

176 mm x 482 mm x 1020 mm

Weight

33.9 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS-03)

Power

Power Recovery

Synchronized with the Synology RackStation

Power Supply Unit / Adapter

1300 W

AC Input Power Voltage

200V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

811.8 W (Access)231 W (HDD Hibernation)

British Thermal Unit

2768.24 BTU/hr (Access)787.71 BTU/hr (HDD Hibernation)

Redundant Power Supply

Yes

Notes

Power consumption is measured when it is fully loaded with Synology HAS5300-8T hard drive(s).

Temperature

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Others

System Fan

80 mm x 80 mm x 4 pcs

Easy Replacement System Fan

Yes

Noise Level*

61.7 dB(A)

Notes

Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Certification

  • UL

  • FCC

  • CE

  • BSMI

  • UKCA

  • EAC

  • VCCI

  • RCM

  • KC
RX6025sas
200 Items

Data sheet

Warranty
5 Years

Specific References

Download

Datasheet - RX6025sas

Download (907.49KB)
