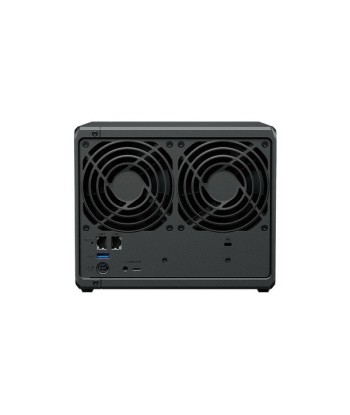

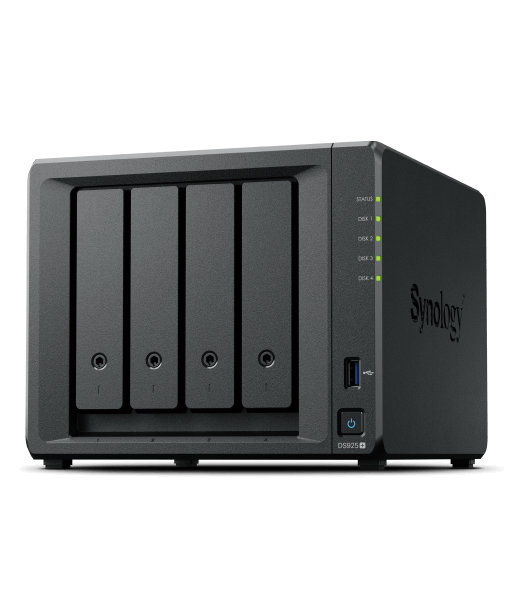

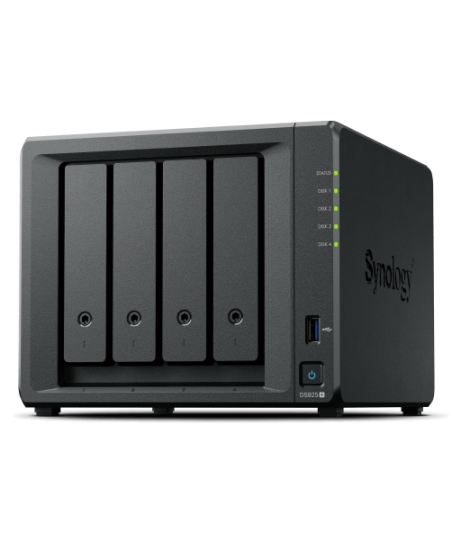

Synology DS925+ 4-Bay DiskStation

฿22,640.00
Tax included

4-bay Plus series model (up to 9-bay) with AMD Ryzen V1500B (4-core), 4 GB DDR4 SODIMM and is upgradeable to 32 GB,Built-in two M.2 NVMe slots, Two built-in 2.5GbE RJ-45 ports

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

DS423+



The Synology DS925 is a capable 4-bay NAS solution that can adapt to growing storage demands. With support for up to nine drives with expansion unit, two M.2 NVMe slots for caching 2 and built-in 2.5GbE. Powered by Synology DiskStation Manager (DSM), it offers a flexible all-inone solution for data sharing, synchronization, backup, and surveillance.



Features :

  • Dependable Performance : Up to 522/565 MB/s sequential read/write throughput supports stable data transfers.

  • Fast and Flexible Networking : Dual 2.5GbE ports provide fast network transfer speeds and increased redundancy.

  • Versatile Network Storage : Leverage built-in file and photo management, data protection, virtualization, and surveillance solutions .

  • Capacity Expansion : Add 5 extra drive bays for up to 180 TB 4 of storage with one DX525 expansion unit.

  • Extendable Product Support : Backed by Synology's 3-year limited hardware warranty, extendable to 5 years in select markets.



Specifications :

CPU

CPU Model

AMD Ryzen V1500B

CPU Quantity

1

CPU Core

4

CPU Architecture

64-bit

CPU Frequency

2.2 GHz

Hardware Encryption Engine

Yes

Memory

System Memory

4 GB DDR4 ECC SODIMM

Memory Module Pre-installed

4 GB (4 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

  • For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays

4

Maximum Drive Bays with Expansion Unit

9 (DX525 x 1)

M.2 Drive Slots

2 (NVMe)

Drive Type (See all supported drives)

  • 3.5" SATA HDD

  • 2.5" SATA SSD

  • M.2 2280 NVMe SSD

Hot Swappable Drive*

Yes

Notes

  • The hot swappable drive feature is not supported by M.2 SSD slots.

  • Compatible drives are mandatory. Please consult our compatibility list before purchasing hard drives. For more details, please refer to this article.

External Ports

RJ-45 2.5GbE LAN Port

2

USB 3.2 Gen 1 Port

2

Expansion Port

1

Expansion Port Type

USB Type-C

Appearance

Size (Height x Width x Depth)

166 mm x 199 mm x 223 mm

Weight

2.26 kg

Others

System Fan

92 mm x 92 mm x 2 pcs

Fan Speed Mode

  • Full-Speed Mode

  • Cool Mode

  • Quiet Mode

Brightness Adjustable Front LED Indicators

Yes

Power Recovery

Yes

Noise Level*

20.5 dB(A)

Scheduled Power On / Off

Yes

Wake on LAN / WAN

Yes

Power Supply Unit / Adapter

100 watts

AC Input Power Voltage

100V to 240V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

37.91 watts (Access)12.33 watts (HDD Hibernation)

British Thermal Unit

129.27 BTU/hr (Access)42.05 BTU/hr (HDD Hibernation)

Notes

  • For more information on how power consumption is measured, refer to this article.

  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature

0°C to 40°C (32°F to 104°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

  • FCC

  • CE

  • BSMI

  • VCCI

  • RCM

  • UKCA

  • EAC

  • CCC

  • KC

  • BIS

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1

  • Accessory Pack X 1

  • AC Power Adapter X 1

  • AC Power Cord X 1

  • RJ-45 LAN Cable X 2

Optional Accessories
DS925+
200 Items

Data sheet

Warranty
3 Years

Specific References

Download

Datasheet - DS925+

Download (1.69MB)
