AC Power Distribution Specification Size [4, 6, 8,12, 20] Outlet [ Choose the size to use ]

• It is made of Electro-Galvanized Steel Sheet which is a thick, durable and 100% rustproof material.

• There is the load current rate 15A, 220V-AC, 1Ø, 50Hz.

• To prevent short circuit and over current with the Electronic Circuit Breaker or the Miniature Circuit Breaker (Optional)

• To prevent over current with Line Suppression and Surge Current 10 KA. Champing Voltage 775 V.

• There is an on-off switch with an indicator light.

• There is the grounding system for security.

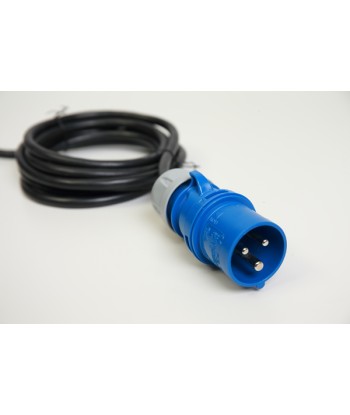

• The AC Distributions designed to provide customers with 2.5mm2 cable (14 AWG) 3c, 3 m., plugs and the ground type.

• Receptacle (Outlet) is duplex universal type (L, N and G)

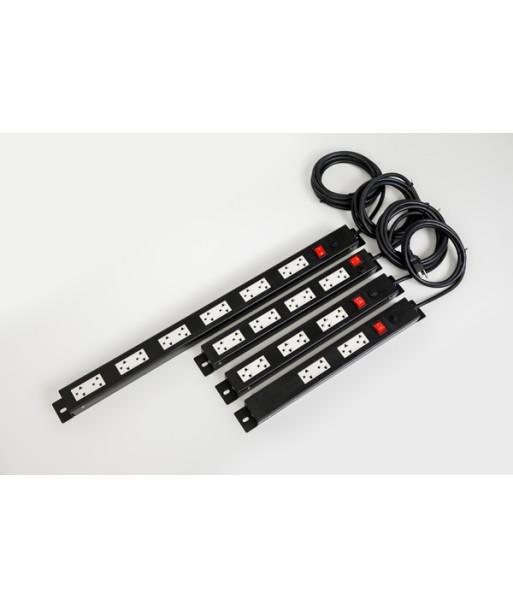

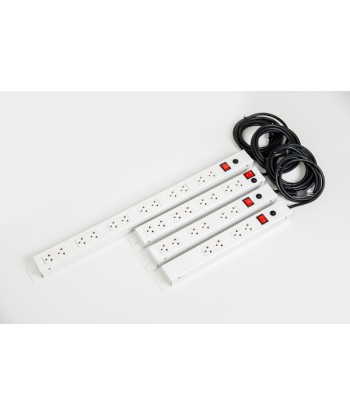

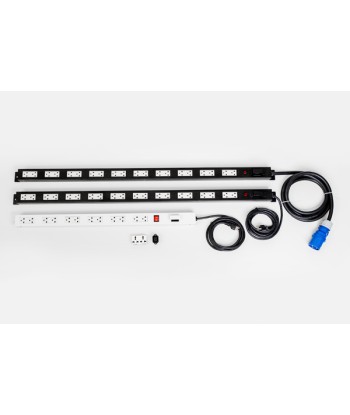

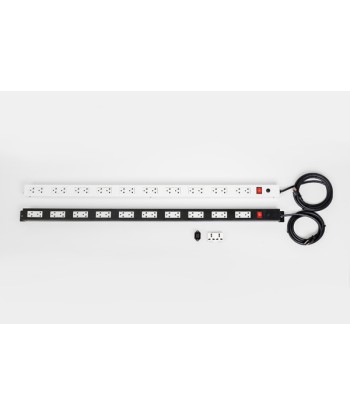

• It is available in various outlet strips( 4, 6, 8, 12 and 20 outlets). the 6 Outlets strip with a standard Length of 19″ rack can be installed on the front horizontal of the Rack.

• Steel Outlet Strip is designed for using with the P POWERC racks and general racks.

• The cable is UL E150631standardand the plug is ULE147650 standard87-89
