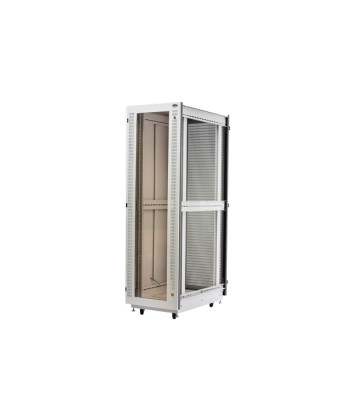

FAR : 19” Perforation Export Server Rack

• Design : FAR: 19” Perforation Export Server Rack designed and produced to be the Modular Knock-down System which is very easy to assemble.

• Material : The rack is made of 1.5 mm Electro-Galvanized Steel sheet which is a thick, durable and 100% rustproof material.

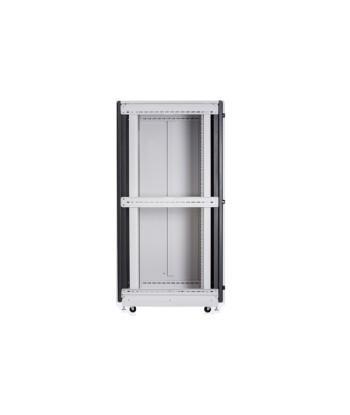

• Frame : Vertical Mounted Frame is made of 2.0 mm Electro-Galvanized Steel Sheet which is a thick, durable and 100% rustproof material. It can be adjusted depending on the depth of the rack as requirement.

• Base : A base of the rack is made of 2.0 mm Electro-Galvanized Steel Sheet and a base for casters is made of 3.0 mm Electro-Galvanized Steel which are thick, durable and 100% rustproof.

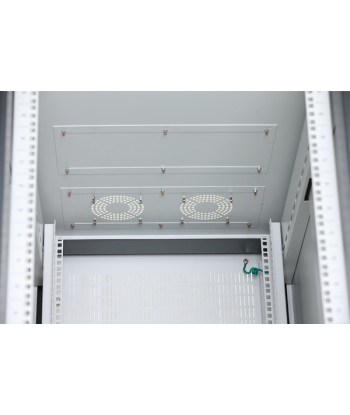

• Roof : The roof of the rack can be installed ventilating fan from 1 unit to 6 units. It can be used to put cables through the hole or can be designed as a high-roof. (Optional)

• Light Built-in : The inside of the rack can be installed a PL-7w light and a limit switch and the light will switch on-off automatically when the rear doors is opened and closed. (Optional)

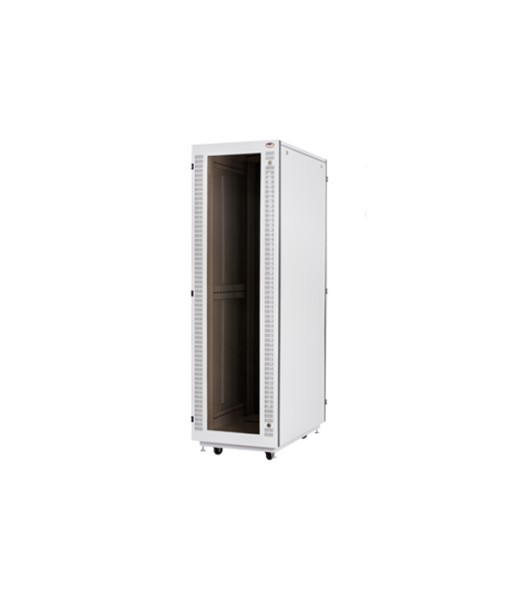

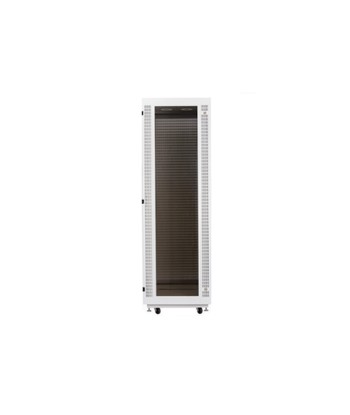

• Front Door : The front door is 5 mm-transparency brown acrylic plastic or 5 mm-Laminated Clear Glass which are thick. It has a seal on the edge of the door. The two sides of the front door are capsule-perforated along the door. The front door has two turn-locks for security and Aluminum hinges. The door can be set to right swing open or left swing open.

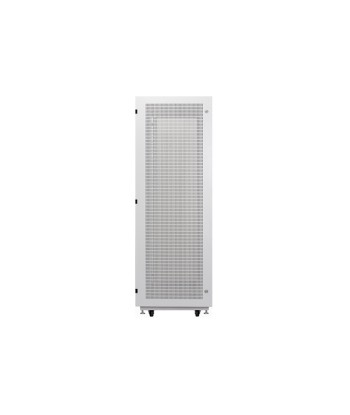

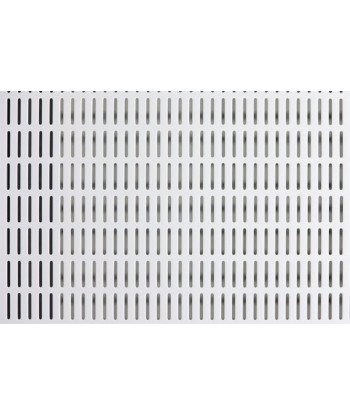

• Rear Door : The rear door is capsule-perforated for ventilation. It has Aluminum hinges and turn-locks for security. The door can be set to right swing open or left swing open.

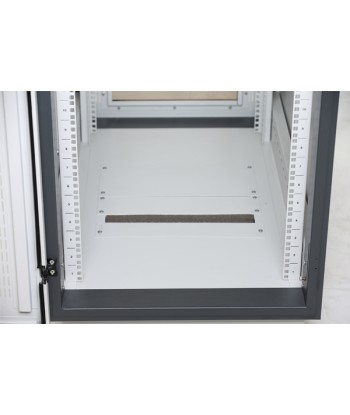

• Bottom Rack : The bottom rack can put cables through the hole and has a slide shutter to protect animals. It can be added a ventilating fan. (Optional)

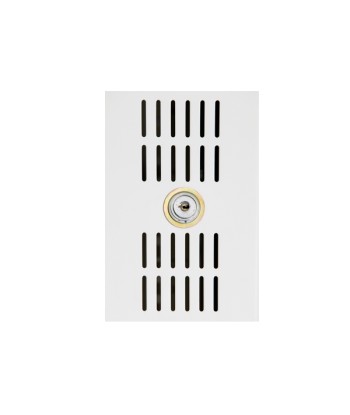

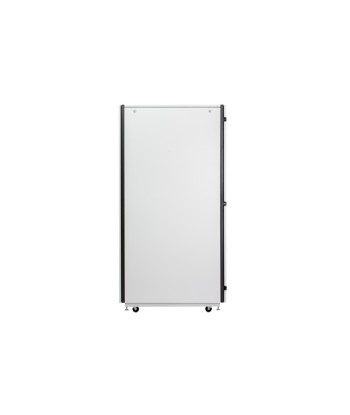

• Side Panel : The side panel secures with two turn-locks and it is convenient to maintain.

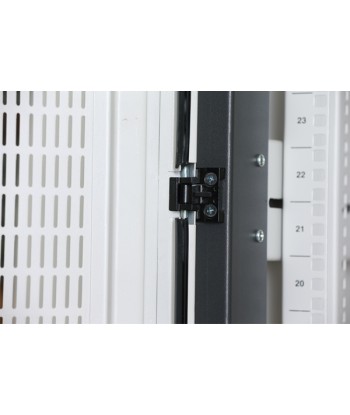

• Hinges : The black hinges of the front-rear door are made of Aluminum which is heavy-duty and 100% rustproof.

• Stands : The rack has four stands which are easy to adjust as requirement.

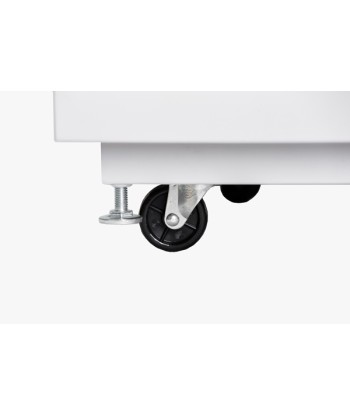

• Casters : The rack has four casters which are made of White Nylon Six. The casters can turn around 360  degree and load 150 kg/caster.

• Ground System : There is the Ground System all parts of the rack with the earth cable kit.

• Color : the rack is a two-tone (light gray and dark gray) which is coated with powder epoxy by Electro-Static System for strength.

• Accessories : The rack is designed to provide customers with M6 bolts, cage nuts and plastic washers.

• Quality Product Standard : The racks meet quality product standards which are ANSI/EIA-310D-1992 (Rev.EIA-310-C), IEC 60297-1, IEC 60297-2, BS 5954: Part 2, DIN 41494.

• Manufacturing standard : ISO 9001:2000 Company
