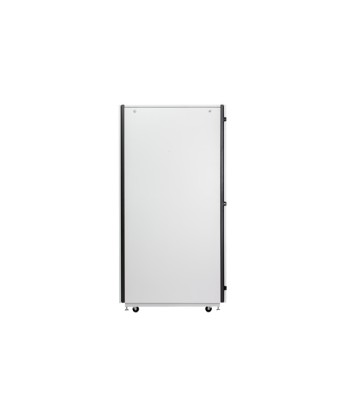

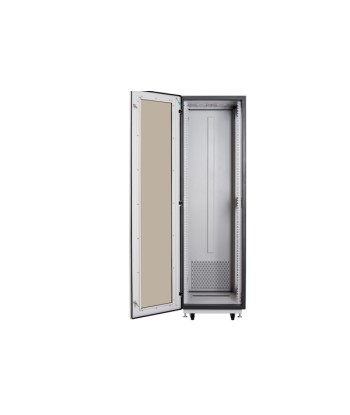

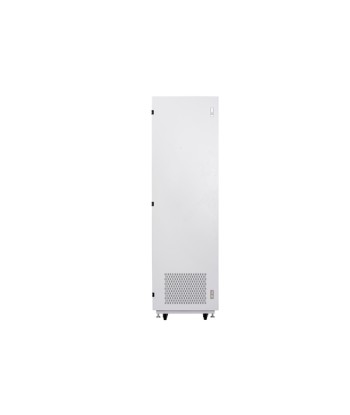

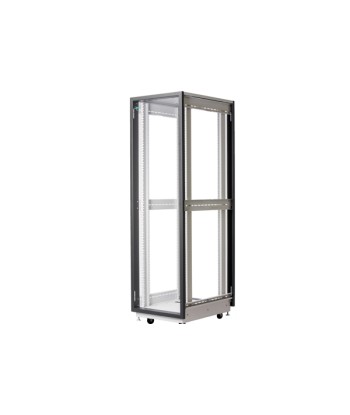

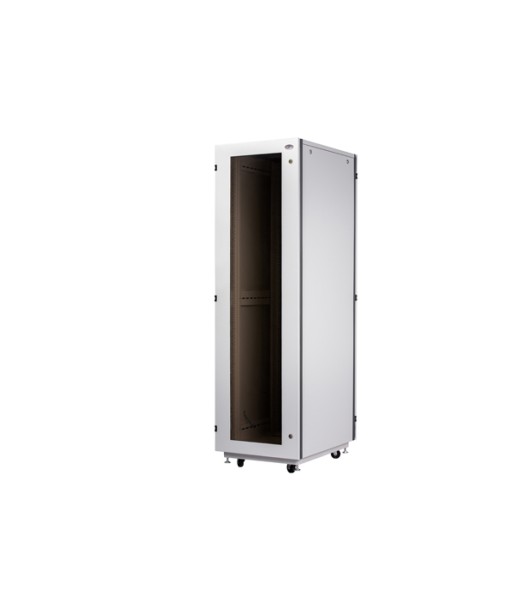

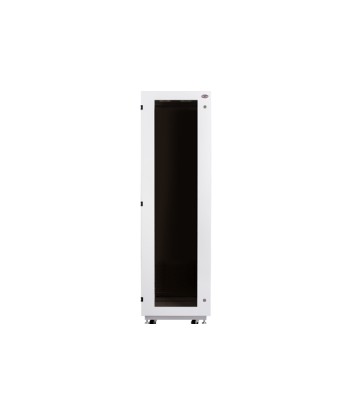

PM-6636 19" HIGH QUALITY EXPORT RACK 36U (60X60 cm.)

฿14,390.00
Tax included

19" HIGH QUALITY EXPORT RACK 36U (60X60 cm.)

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

19” High Quality Export Rack (Close Rack)



  • Design : 9” High Quality Export Rack is designed and produced to be the Modular Knock-down System which is very easy to assemble.

  • Material : The rack is made of 1.5 mm Electro-Galvanized steel Sheet which is a thick, durable and 100% rustproof material.

  • Frame : Vertical Mounted Frame is made of 2.0 mm Electro-Galvanized Steel Sheet which is a thick, durable and 100% rustproof material. It can be adjusted depending on the depth of the rack as requirement.

  • Base : A base of the rack is made of 2.0 mm Electro-Galvanized Steel Sheet and a base for casters is made of 3.0 mm Electro- Galvanized Steel Sheet which are thick, durable and 100% rustproof.

  • Roof : The roof of the rack can be installed ventilating fan from 1 unit to 6 units. It can be used to put cables through the hole or can be designed as a high-roof. (Optional)

  • Light Built-in : The inside of the rack can be installed a PL-7w light and a limit switch and the light will switch on-off automatically when the rear doors is opened and closed. (Optional)

  • Front Door : The front door is 5mm-transparency brown acrylic plastic which is thick and lightweight. It has a seal on the edge of the door to prevent dust. The front door has Aluminum hinges and turn-locks for security. It can be set to right swing open or left swing open.

  • Rear Door : The rear door is perforated for ventilation at the bottom of the rear door and has a dust-proof filter for covering. It has a seal on the edge of the door to prevent dust. The rear door has Aluminum hinges and push-locks for security. The door can be set to right swing open or left swing open.

  • Bottom Rack : The bottom rack can put cables through the hole and has a slide shutter to protect animals. It can be added a ventilating fan. (Optional)

  • Side Pane l: The side panel secures with two turn-locks and it is convenient to maintain.

  • Hinges: The black hinges of the front-rear door are made of Aluminum which is heavy-duty and 100% rustproof.

  • Stands : The rack has four stands which are easy to adjust as requirement.

  • Casters : The rack has four casters which are made of White Nylon Six. The casters can turn around 360 degree a and load 150 kg./caster.

  • Ground System : There is the Ground System all parts of the rack with the earth cable kit.

  • Color : The rack is a two-tone (light gray and dark gray) which is coated with powder epoxy by Electro-Static System for strength.

  • Accessories : The rack is designed to provide customers with M6 bolts, cage nuts and plastic washers.

  • Quality Product Standard : The racks meet quality product standards which are ANSI/EIA-310D-1992 (Rev.EIA-310-C), IEC 60297-1, IEC 60297-2, BS 5954: Part 2, DIN 41494.

  • Manufacturing standard : ISO 9001:2000 company
