Nexis KE861D Dual Monitors DVI KVMR Extender Over LAN with Audio, Mic, RS232, USB Hub

฿51,880.00
Tax included

100M / Dual Monitors DVI KVMR Extender Over LAN w/Audio,Mic,Hub&RS232 4 x USB2.0 Port for keyboard, mouse and other USB 2.0 devices High Quality Digital Video Support up to 100M Extension ** รุ่นนี้ต้องสายเพิ่ม 3 เส้น ในชุดไม่ได้แถมมาให้ ***

**มัดจำเพื่อสั่งซื้อ**

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Nexis KE861D

Dual Monitors DVI KVMR Extender Over LAN with Audio, Mic, RS232, USB Hub



Features :

  • Extension distance up to 100M/ 330ft. over two Cat5e UTP cable segment

  • Extending another 100M by adding the Gigabit Ethernet Switch through Cat5e cable between

  • Transmitter and Receiver Units

  • 4 x USB 2.0 Ports with USB extension over LAN for keyboard, mouse and other USB devices

  • Support Audio, Mic., and RS232 extension over LAN

  • Each Digital Video resolution can support up to 1920 x 1080

  • Graphic Mode and Video Mode for selection

  • Fully compatible with USB HID device for any keyboard, mouse and USB devices

  • Supports multiplatform OS such as Windows 7/8/10/Linux and Mac OS X

  • Optional IR remote control Unit accessories available

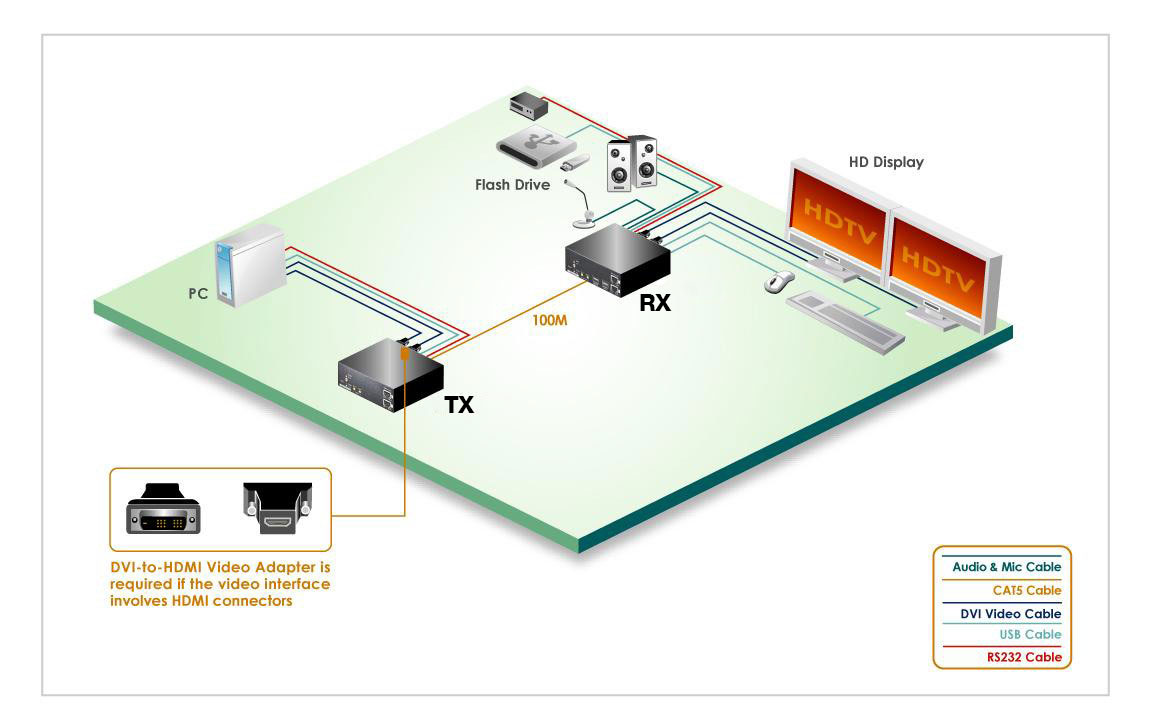

Diagram



Specifications :

Model

KE861D-TX

KE861D-RX

modules

1 x KE861D-TX (Transmitter Unit)

1 x KE861D-RX (Receiver unit)

PC connections

1

-

connections

2 x DVI-D socket
(not adaptable from / to VGA)1 x IR Remote "Out" socket 1 x USB port (Type B)1 x Mi krofon "Out" socket1 x loudspeaker "in" socket1 x RJ45 socket (LAN or 1: 1)

2 x DVI-D  socket
(not adaptable from / to VGA)1 x IR remote " In" socket4 x USB port (Type A)1 x Mi krofon " in" socket1 x speaker "Out" socket1 x RJ45 socket (LAN or 1: 1)

LEDs

1 x power (red) 1 x link (green)

switch

2 x buttons1 x 3 dip switch

DVI video resolution

up to 1920 x 1200 / 60Hz / Full HD 1080p - 100m (digital)

Operating temperature

0 - 40 ° C

Storage temperature

-20 - 60 ° C

humidity

0 - 90% RH, Non- Condensing

mass

750g

750g

Dimensions (L x W x H)

120 x 135 x 53.5 mm

casing

Metal

power adapter

2x 9V, 2A DCCurrent consumption of the modules at 9V DC: Transmitter approx. 0.5A, receiver approx. 0.4A (monitor, as well as standard keyboard and standard mouse connected).

Approvals

FCC, CE
KE861D
100 Items

Data sheet

Warranty
3 Years
