Aten CS1782A 2-Port USB DVI Dual Link KVM Switch

฿12,440.00
Tax included

2-Port USB DVI Dual Link KVMP™  Switch w/Audio & USB2.0 hub x 2,  w/ USB DVI-D Dual Link Cable 1.8m  * 2

**มัดจำเพื่อสั่งซื้อ**

Quantity

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Aten CS1782A

2-Port USB DVI Dual Link KVM Switch



The CS1782A USB DVI Dual Link KVMP™ Switch charts a revolutionary direction in KVM switch functionality. It combines the capabilities of a 2-port KVM switch with a 2-Port USB hub, while providing a DVI monitor interface and audio support. Moreover it carries advanced features, such as 120Hz 3D display support, gaming keyboard compatibility and port selection/switching using a mouse, aimed at giving you flexibility, convenience and enjoyment.



คุณสมบัติ

  • 2-port DVI KVMP Switch with USB 2.0 and 7.1 Surround Sound Audio

  • One USB console controls two computers and two additional USB devices

  • 2-port built in USB 2.0 hub fully compliant with the USB 2.0 specification

  • Full bass response for high quality 7.1 channel surround sound systems

  • Computer selection via front panel pushbuttons, hotkeys, and mouse NEW!

  • Multiplatform support – Windows, Linux, Mac, and Sun*

  • Independent switching of KVM, USB, and Audio focus

  • DVI digital and analog monitor support – fully compliant with the DVI specifications

  • Superior video quality: 1920 x 1200 @ 60Hz (Single Link); 2560 x 1600 @ 60Hz (Dual Link): Works with cutting edge 120Hz LCD monitors and active shutter glasses to create a 3D environment with maximum resolution of up to 1920 x 1080 for your ideal workspace and entertainment

  • HDCP compatible

  • Support widescreen resolutions

  • HDCP compatible

  • Video DynaSync™ – Exclusive ATEN technology that eliminates boot-up display problems and optimizes resolution when switching between ports

  • Power on detection – if one of the computers is powered off, the switch will automatically switch to the next powered-on computer NEW!

  • Console mouse port emulation/bypass feature that supports most mouse drivers and multifunction mice

  • Console keyboard emulation/bypass feature that supports most gaming / multimedia keyboards NEW!

  • Complete keyboard emulation for error-free booting

  • Mac/Sun keyboard support and emulation*

  • Multilingual keyboard mapping – supports English, Japanese, and French keyboards

  • Auto Scan Mode for monitoring all computers

  • Firmware upgradable

* PC keyboard combinations emulate Mac/Sun keyboards

* Mac/Sun keyboard work only with their own

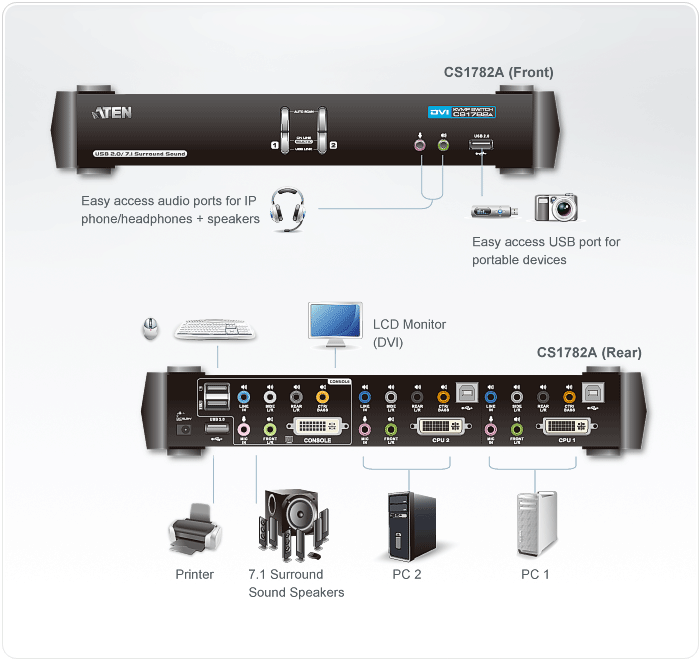

ผังการต่อ



ข้อมูลจำเพาะ

Computer Connections

2

Port Selection

Front Panel Pushbuttons, Hotkeys, Mouse

Connectors

Console Ports

Keyboard

1 x USB Type A Female (Black; rear panel)

Video

1 x DVI-I Female (White)

Mouse

1 x USB Type A Female (Black; rear panel)

Audio

Line Out

2 x Mini Stereo Jack Female (Green;

1 x front panel, 1 x rear panel)

Line In

1 x Mini Stereo Jack

Female (Blue)

Side Speaker

Out

1 x Mini Stereo Jack

Female (Gray)

Rear Speaker

Out

1 x Mini Stereo Jack

Female (Black)

Center/

Subwoofer

1 x Mini Stereo Jack

Female (Orange)

Microphone

2 x Mini Stereo Jack Female (Pink; 1 x front

panel, 1 x rear panel)

KVM

Ports

Keyboard / Mouse

2 x USB Type B

Female (White)

Video

2 x DVI-I Female

(White)

Audio

Line Out

2 x Mini Stereo Jack

Female (Green)

Line In

2 x Mini Stereo Jack

Female (Blue)

Side

Speaker Out

2 x Mini Stereo Jack

Female (Gray)

Rear Speaker

Out

2 x Mini Stereo Jack

Female (Black)

Center/

Subwoofer

2 x Mini Stereo Jack

Female (Orange)

Microphone

2 x Mini Stereo Jack

Female (Pink)

Power

1 x DC Jack

USB 2.0 Hub

2 x USB Type A Female (White;

1 x front panel, 1 x rear panel)

Switches

Power Selected

2 x Pushbutton

LEDs

On Line / Selected

2 (Orange)

USB Link

2 (Green)

Emulation

Keyboard / Mouse

USB

Video

DVI Dual Link: 2560x1600

DVI Single Link: 1920 x 1200

Scan Interval

1–99 secs. (5 secs. default)

Power Consumption

DC 5.3V, 9 W

Environment

Operating Temp.

0 -50°C

Storage Temp.

-20-60°C

Humidity

0–80% RH, Non-condensing

Physical Properties

Housing

Metal

Weight

0.90 kg

Dimensions

( L x W x H )

27.00 x 8.70 x 5.50 cm



อุปกรณ์ในกล่อง

  • 1x CS1782A USB DVI Dual Link KVMP™ Switch

  • 2x Custom DVI-D KVM Cables sets

  • 2x Custom 7.1 Channel Surround Sound Cable Sets

  • 1x Power Adapter

  • 1x User Manual

  • 1x Quick Start Guide

CS1782A
100 Items

Data sheet

Warranty
3 Years
